FIELDBUS BUS COUPLERS

Helmholz bus couplers used for transceive data from master to master in 2 network (Profinet, Profibus, ModbusTCP…)

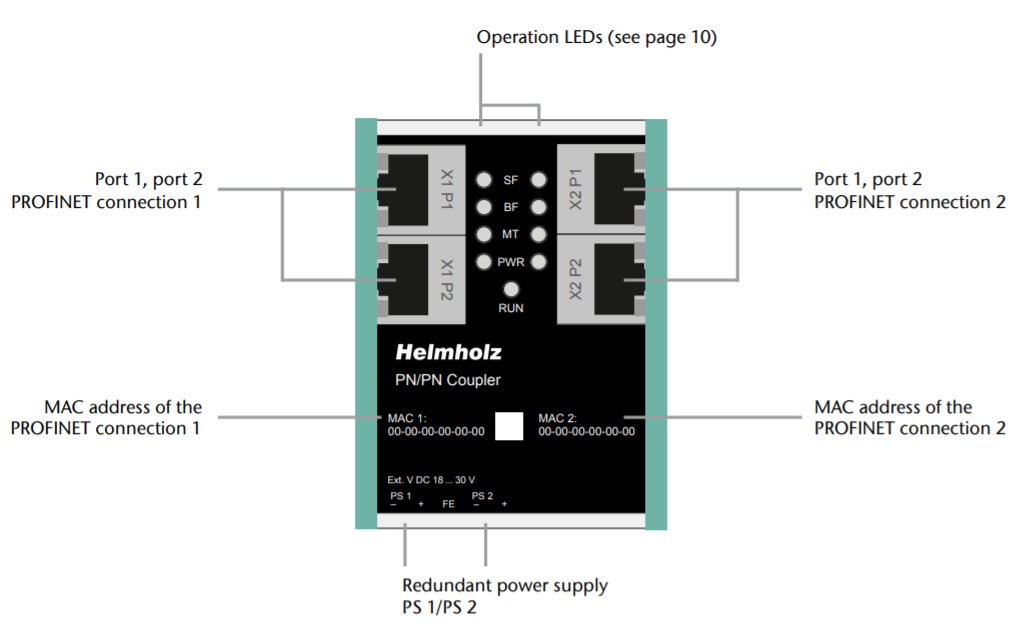

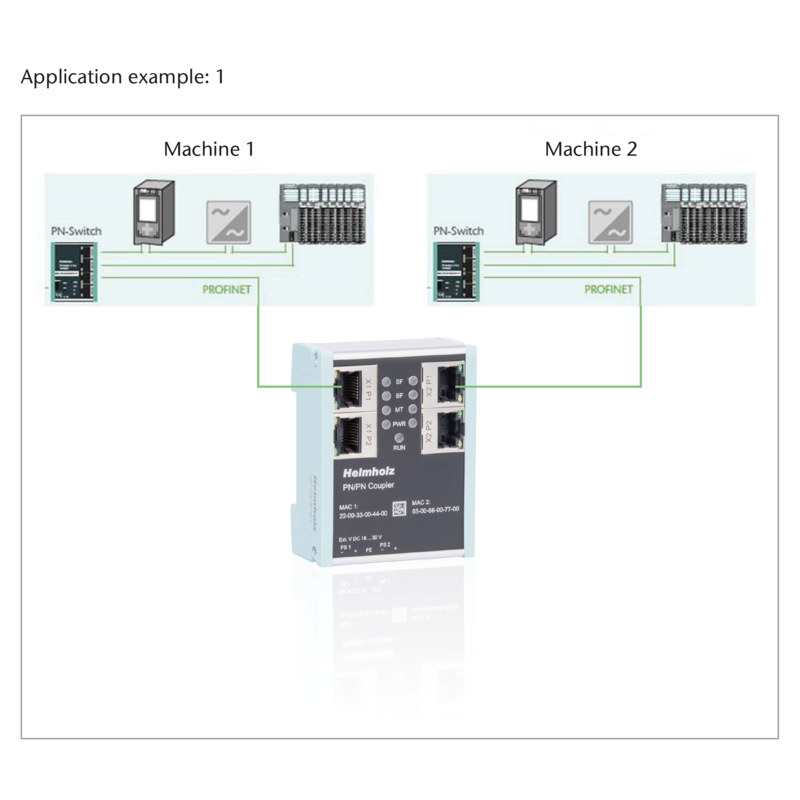

PN/PN coupler used for 2 profinet – profinet network. Data shared each others.

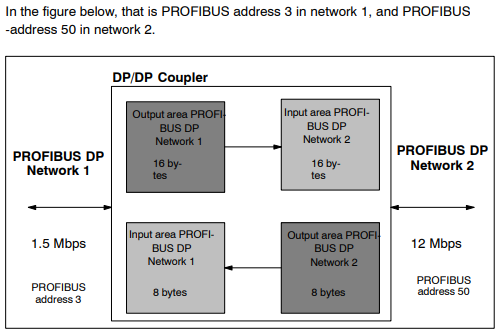

DP/DP coupler used for 2 different profibus network.

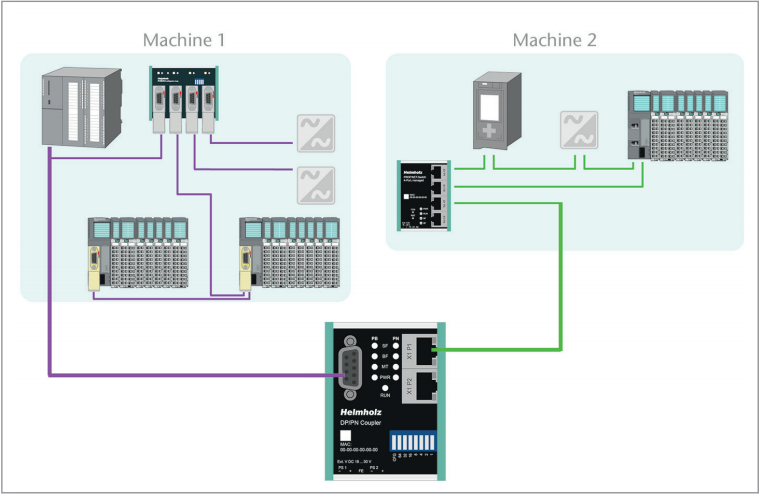

DP/PN coupler used for transceive data between profibus and profinet network.

– Maximum transceive data: 244 byte input and 244 byte output
– Profibus data transfer rate: 9.6 to 12 Mbps
– Profinet data transfer rate: up to 100 Mbps

———————————————————————————————————————————————————————-

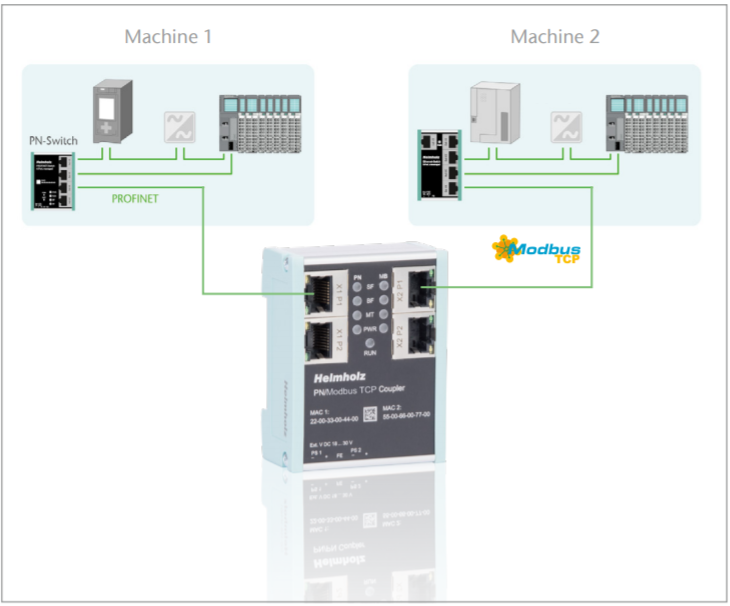

PN/ModbusTCP coupler used for transceive data between Profinet controller and ModbusTCP client.
– Maximum transceive data: 1024 byte input and output
– Profinet: up to 100 Mbps
– ModbusTCP: 10/100 Mbps full duplex

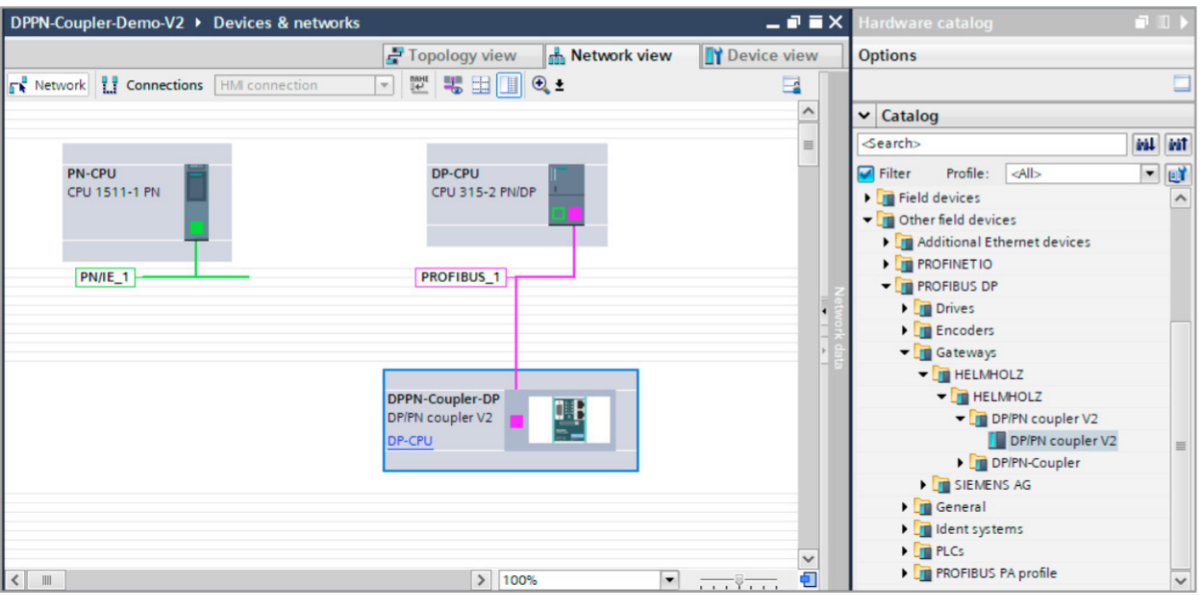

Network configuration performed base on GSD và GSDML file, which is imported to config software controller (TIA portal…)
