Xy-lanh compact ADVU-40-15-P-A 156542 của Festo

Xy-lanh compact ADVU-40-15-P-A 156542 của Festo

– Tác động kép
– Đường kính piston 40mm
– Chiều dài hành trình: 15mm
– Đầu kết nối khí nén: G1/8
– Lực ở 6 bar: 754 N

– Tác động kép
– Đường kính piston 40mm
– Chiều dài hành trình: 15mm
– Lực ở 6 bar: 754 N

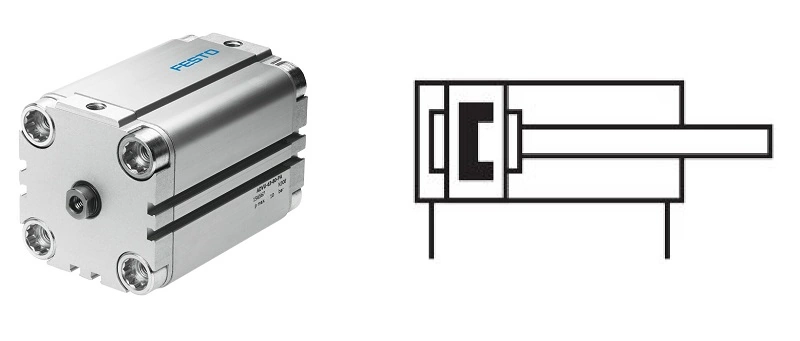

Xy-lanh compact ADVU-40-15-P-A 156542 của Festo - body

– Đầu kết nối khí nén: G1/8

Thông số kỹ thuật – Xy-lanh compact ADVU-40-15-P-A 156542 của Festo

Stroke 15 mm
Piston diameter 40 mm
Piston rod thread M6
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Mode of operation Double-acting
Piston-rod end Female thread
Design Piston Piston rod
Position detection Via proximity switch
Symbol 00991217
Variants Piston rod at one end
Operating pressure 0.08 MPa … 1 MPa
Operating pressure 0.8 bar … 10 bar
Operating pressure 11.6 psi … 145 psi
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 – Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20 °C … 80 °C
Impact energy in end positions 0.52 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 686 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 754 N
Moving mass for 0 mm stroke 63 g
Additional moving mass per 10 mm stroke 9 g
Basic weight for 0 mm stroke 433 g
Additional weight per 10 mm stroke 59 g
Type of mounting With through-hole With accessories
Pneumatic connection G1/8
Material collar screws Galvanised steel
Material cover Wrought aluminium alloy
Material dynamic seals NBR TPE-U(PU)
Material piston rod High-alloy steel
Material cylinder barrel Wrought aluminium alloy
