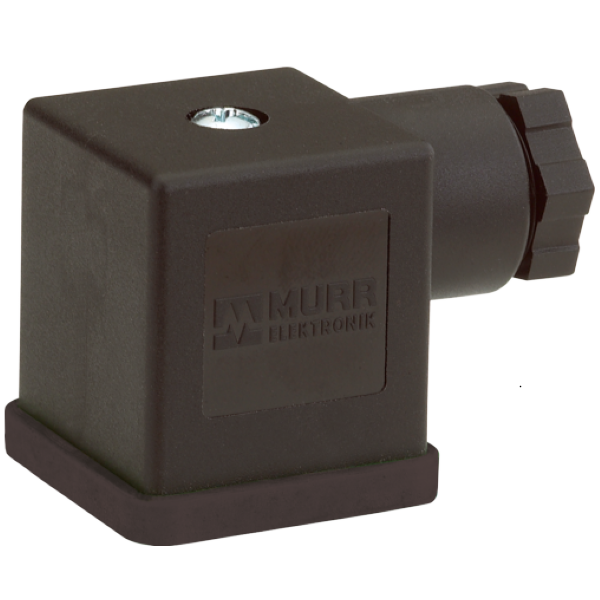

Valve plug A-18mm Murrelektronik 7000-29405-0000000
Valve plug A-18mm Murrelektronik 7000-29405-0000000 dùng cho công tắc áp lực…
– 3 chân + PE, Form A (18 mm)
– Điện áp 250 V AC/DC
– Screwed terminal. IP65

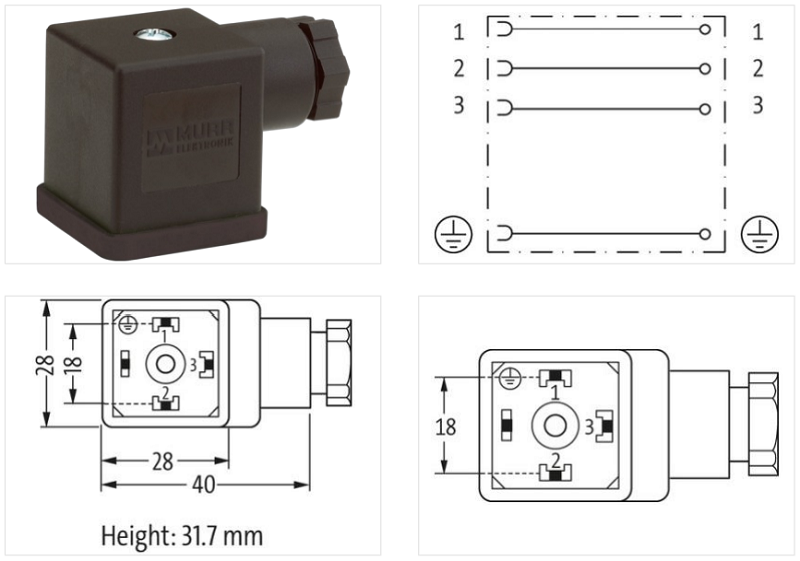

Valve plug A-18mm Murrelektronik 7000-29405-0000000 là đầu nối dùng cho công tắc áp lực, Form A (18 mm), 3 chân + PE. Họ SVS Eco
(3-pol. + PE, 0,5 – 1,5mm², 6 – 8mm)
Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt.
Screw terminal. IP65
Thông số kỹ thuật – Valve plug A-18mm Murrelektronik 7000-29405-0000000
Side 1
| Mounting method | inserted, screwed |
| Degree of protection (EN IEC 60529) | IP65 |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 10 A |
Installation
| Connection cross section min. | 0,5 mm² |
| Connection cross section max. | 1,5 mm² |
Installation | Connection
| Tightening torque | 0,4 Nm |
| Tightening torque clamping screw | 0,2 Nm |
| Mounting set | M16 x 1.5 |
Installation | Pin assignment
| No. of poles | 3 + PE |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
Mechanical data | Material data
| Color housing | black |
| Material gasket | NBR |
| Material housing | PA |
Mechanical data | Mounting data
| fastening screw | M3 |
| Clamping range min. | 6 mm |
| Clamping range max. | 8 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 90 °C |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
