Trạm IO mạng Profinet MVK-MPNIO DIO16 M12L 4P 55160

– Profinet – M12 D-code: DIO16.
– Cấp nguồn qua M12 Power L-code.
– IP65/67: Chịu bụi nước.
– Fast diagnostics.

Trạm IO mạng Profinet MVK-MPNIO DIO16 M12L 4P 55160 là mô-đun I/O phân tán mạng Profinet, có vỏ kim loại phù hợp cho môi trường công nghiệp.

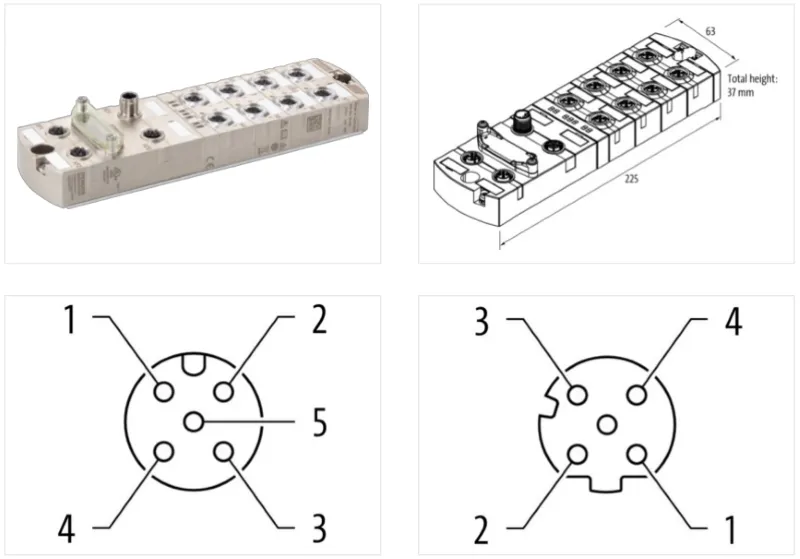

Trạm IO mạng Profinet MVK-MPNIO DIO16 M12L 4P 55160 - detail

  • Profinet – M12 D-code: DIO16.
  • Cấp nguồn qua M12 Power L-code.
  • IP65/67: Chịu bụi nước.
  • Fast diagnostics.

Sản phẩm khác

Electrical data | Supply

Norm operating voltage IEC/EN 61131-2
Operating voltage US DC 24 V
Total current US max. 16 A
Operating voltage UA DC 24 V
Total current UA max. 16 A

Electrical data | Input

Sensor current US per input max. 0,2 A
Short-circuit protected Yes
Overload resistant Yes
Type input for 3-wire sensors or mechanical switches, PNP

Electrical data | Output

Output current per pin max. 1,6 A
Total current outputs max. 9 A
Overload resistant Yes
Short-circuit protected Yes
Lamp load 10 W

Industrial communication | Bus data

Supported protocol Profinet

Industrial communication | Profinet

Conformance Class C
addressing DCP
Netload Class III
Specification V2.3
IRT-network communication Yes
MRP client Yes
Fast-Start-Up (FSU) Yes
Fast start up time max. 0,5 s
Shared device/input Yes
Number of active connections (IO controller) max. 2

Diagnostics

Actuator warning per channel via LED and BUS
Short circuit diagnosis Yes
Overload diagnosis Yes
Cable break per port
Diagnostic No voltage, Under voltage
Diagnostic via BUS per module and channel
Diagnostic via LED per module and channel
LED display Ethernet connection/data traffic

Device protection | Electrical

Degree of protection (EN IEC 60529) IP67

Mechanical data | Mounting data

Height 37 mm
Width 63 mm
Depth 225 mm
Suitable for mounting type 2-hole screw mounting

Environmental characteristics | Climatic

Operating temperature min. -25 °C
Operating temperature max. 60 °C
Ambient temperature (storage, transport) -25 °C … 70 °C
