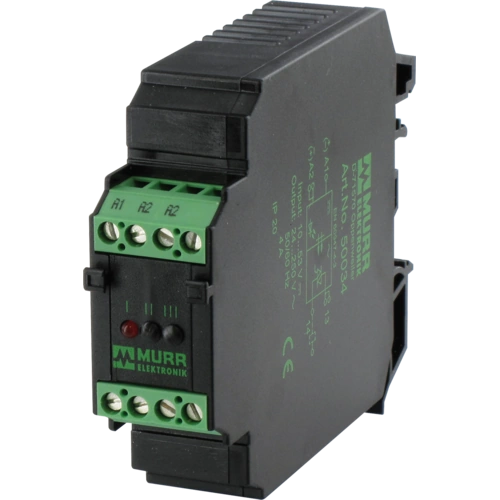

Rơ-le quang OPTO-COUPLER DC 24V 4A - header

Rơ-le quang OPTO-COUPLER DC 24V 4A AMS 50044

– Là opto-coupler module
– Diện áp vào 53VDC
– Đầu ra 53VDC, transistor 4A
– Screw-type terminal, ngang 22.5mm
– Lắp DIN-rail

Rơ-le quang OPTO-COUPLER DC 24V 4A AMS 50044 của Murrelektronik: Input 53VDC, Output 4A

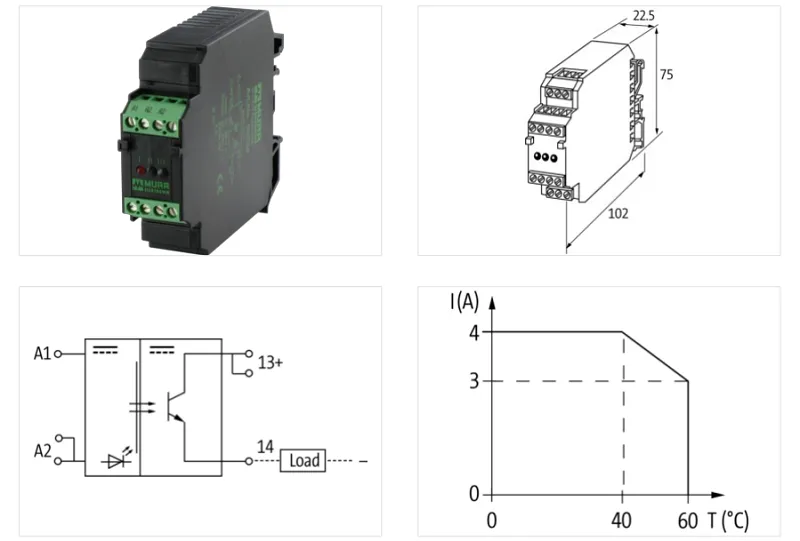

Rơ-le quang OPTO-COUPLER DC 24V 4A - detail

  • Là opto-coupler module
  • Input 53VDC, Output 53VDC, transistor 4A
  • Screw-type terminal 22.5mm

Các rơ-le khác

Electrical data | Input

Input voltage DC min. 10 V
Input voltage DC max. 53 V
Input voltage OFF DC min. 0 V
Input voltage OFF DC max. 3 V
Input current 14,5 mA

Electrical data | Output

Voltage drop DC max. 1,5 V
Switch on delay max. 4 µs
Switch off delay max. 7 µs
Voltage switching DC min. 4,5 V
Switching voltage DC max. 53 V
Switching current min. 10 mA
Switching current max. 4 A
Switching frequency ohmic max. 2.000 Hz
Switching frequency inductive max. 1 Hz

Diagnostics

Status indication LED red

Device protection | Electrical

Rated insulation voltage 3.750 V

Device protection | Media

Flame resistance flame retardant

Mechanical data | Material data

housing Plastic
Color housing black

Mechanical data | Mounting data

Height 75 mm
Width 22,5 mm
Depth 85 mm
Mounting method geschnappt
Suitable for mounting type Mounting rail TH35, (EN 60715), G32

Environmental characteristics | Climatic

Operating temperature min. -20 °C
Operating temperature max. 60 °C



Datasheet
