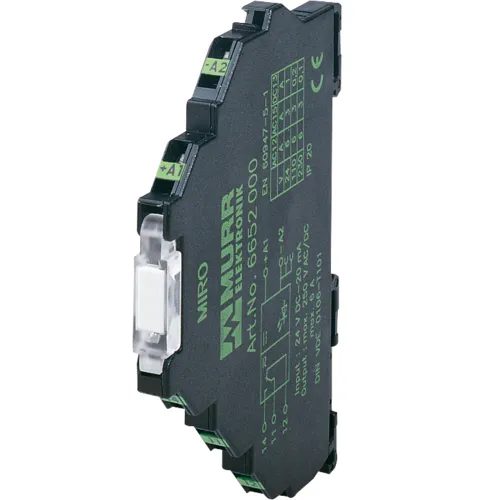

Rơ-le quang coil 24VDC ngõ ra SPDT 6652000 - header

Rơ-le quang coil 24VDC ngõ ra SPDT 6A MIRO 6652000

– Rơ-le quang 24VDC
– Ngõ ra SPDT 6A
– Termina spring clamp

Rơ-le quang coil 24VDC ngõ ra SPDT 6A MIRO 6652000 của Murrelektronik: input 24VDC, output SPDT 6A, terminal spring clamp. Mỏng 6.2mm

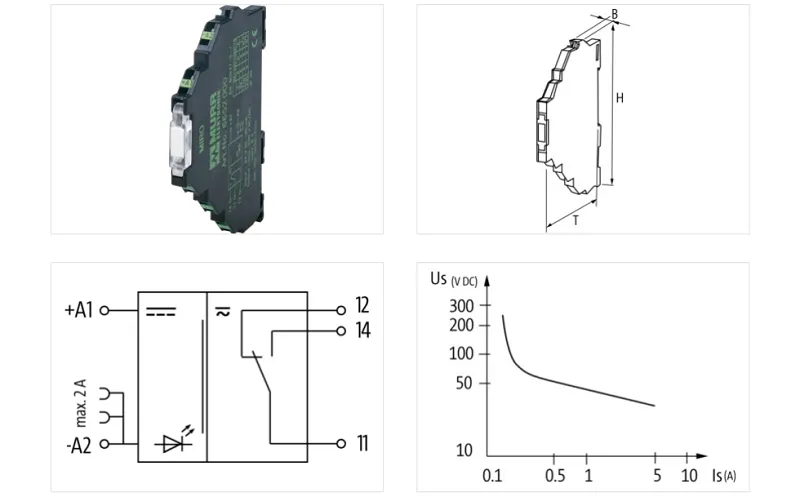

Rơ-le quang coil 24VDC ngõ ra SPDT 6652000 - detail

  • Input: 24 VDC
  • Output: 250 VAC/DC / 6 A, 1 C/O
  • Width 6.2 mm
  • Cầu đấu dây spring clamp
  • Lắp trên DIN-rail

Rơ-le khác

Electrical data | Input

Input voltage DC 24 V
Input voltage DC min. 19,2 V
Input voltage DC max. 30 V
Input current 14 mA

Electrical data | Output

Switching voltage AC max. 250 V
Switching voltage DC max. 250 V
Switching current max. 6 A
Switching current DC 100 mA
Switching frequency max. 0,1 Hz
Additional condition switching frequency with load
Power rating AC max. 1.500 VA
Power rating DC max. 120 W
Utilization category AC-12 (EN IEC 60947-5-1) 6 A @ 24 V 6 A @ 110 V 6 A @ 230 V
Utilization category AC-15 (EN IEC 60947-5-1) 3 A @ 24 V 3 A @ 110 V 3 A @ 230 V
Utilization category DC-13 (EN IEC 60947-5-1) 1 A @ 24 V 0.2 A @ 110 V 0.1 A @ 230 V

Diagnostics

Status indication LED green

Device protection

Condition lifetime load-dependent

Device protection | Electrical

Electrical lifetime 0 cycles
Rated surge voltage 4 kV

Device protection | Mechanical

Mechanical endurance 0 cycles

Mechanical data

Response time max. 10 ms
Drop-out time max. 15 ms
Bounce time max. 1,5 ms

Mechanical data | Material data

Material contact Ag Sn O2

Mechanical data | Mounting data

Height 91 mm
Width 6,2 mm
Depth 70 mm
Mounting method geschnappt
Suitable for mounting type (EN 60715), mounting rail

Environmental characteristics | Climatic

Operating temperature min. -25 °C
Operating temperature max. 60 °C
