– Female 16 pole push-in
– 500V/16A

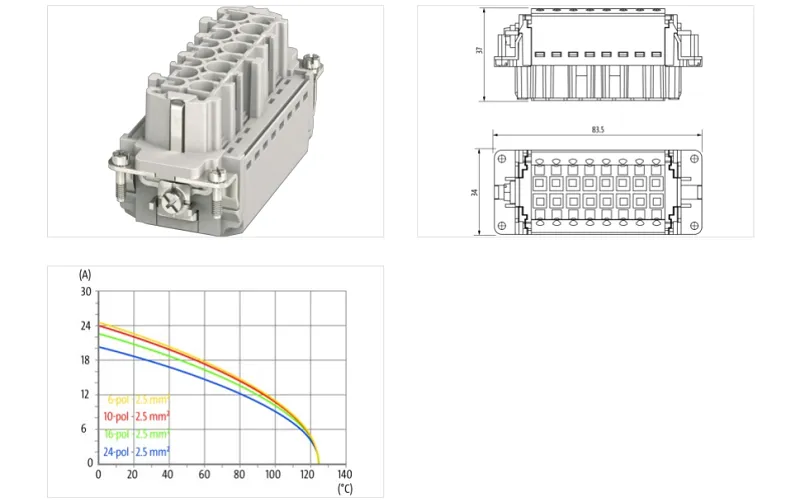

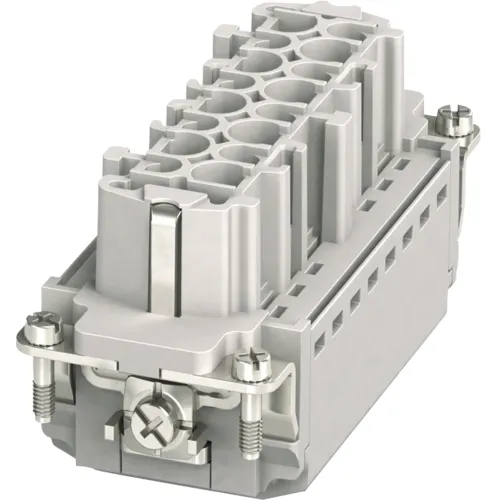

Phần ruột đầu nối công nghiệp nặng 16 cực female 16A 70MH-EB016-FP03020 của Murrelektronik form B16
Electrical data | Supply
| Operating voltage AC | 500 V |
| Operating voltage DC | 500 V |
| Operating current | 16 A |
Installation
| Connection cross section min. | 0,14 mm² |
| Connection cross section max. | 2,5 mm² |
| AWG number min. | 26 |
| AWG number max. | 14 |
Installation | Connection
| Gender | female |
| Connection | Push-In spring clamp terminals |
| Mating cycles min. | 500 |
| Stripping length min. | 8 mm |
| Stripping length max. | 10 mm |
Installation | Pin assignment
| No. of poles | 16 + PE |
Device protection | Electrical
| Pollution Degree | 3 |
| Overvoltage category (EN 60950-1) | III |
| Rated surge voltage | 6 kV |
Mechanical data | Material data
| Material contact carrier | PC |
| Material contact | Brass |
| Coating contact | silver-plated |
| Combustibility class (UL94) | V-0 |
Mechanical data | Mounting data
| Height | 35,6 mm |
| Width | 33,9 mm |
| Depth | 84 mm |
| Size | B16 |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 125 °C |
| Climatic category (EN IEC 60068-1) | 40/125/10 |
