– PCI DeviceNet
– Hỗ trợ Master/Slave
– Chip truyền thông: netX 100
– Cách điện 1000 V

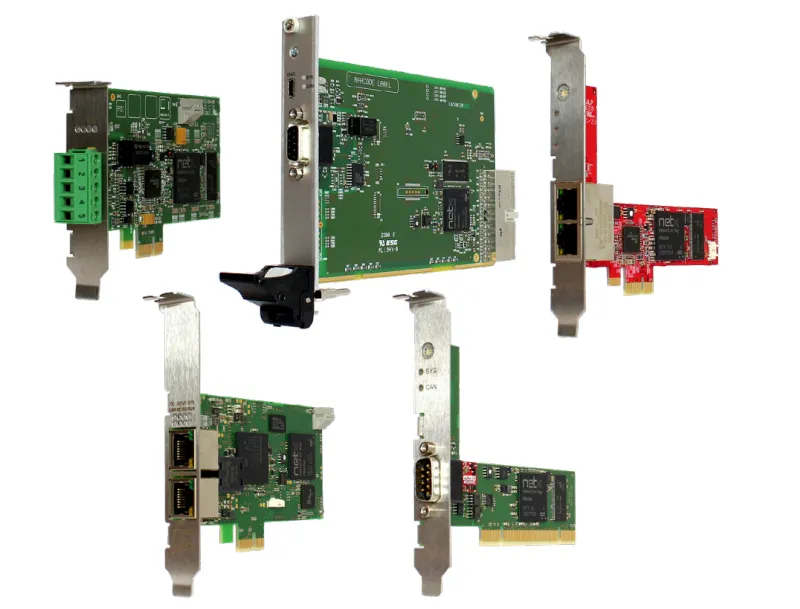

PC card mạng DeviceNet CIFX 50-DN/ML của Hilscher là card PCI DeviceNet Master/Slave dựa trên chip netX 100. Hỗ trợ cả Master và Slave
| Product | Product name | CIFX 50-DN |
| Part number | 1250.510 | |
| Brief description | PC Card cifX PCI DeviceNet Master or Slave | |
| Function | Communication interface with PCI and DeviceNet interface | |
| Communication controller | Type | netX 100 |
| Integrated Memory | RAM | 8 MB SDRAM |
| FLASH | 4 MB serial Flash EPROM | |
| System interface | Bus type | PCI |
| Transmission rate | 33 MHz | |
| Data access | DPM or DMA (Direct Memory Access) | |
| Data width | 32 bit | |
| Communication interface | Communication standard | DeviceNet |
| Interface type | ISO-11898 according to DeviceNet specification, optically isolated | |
| Isolation voltage | 1000 V DC (tested for 1 minute) | |
| Connector | COMBICON, male, 5-pin | |
| Power supply | Supply voltage | +3.3 V DC ±5 % |
| Maximum current (typically) | 650 mA (at 3,3 V) | |
| Connector | via PCI Bus | |
| Displays | LED display | SYS, System status LED |
| MNS, Module Network Status (duo LED) | ||
| Operating element | Rotary switch slot number (card ID) | To set the slot number (card ID) |
| Permitted ambient conditions | Operating temperature range | -20 °C … +70 °C (Air flow during measurment: 0,5 m/s) |
| Storage temperature range | -40 °C … +85 °C | |
| Humidity | 10 % … 95 % relative humidity, no condensation permitted | |
| Environment | For UL compliant usage: The device must be used in a pollution degree 2 environment. | |
| Altitude | 0 m … 2000 m | |

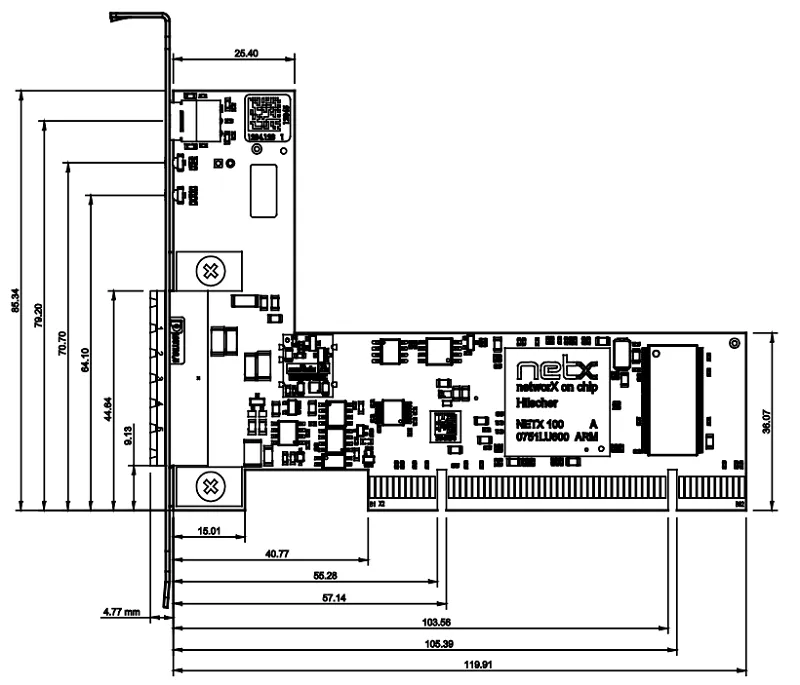

| Device | Dimensions (L x W x H) | 120 mm x 86 mm x 18.5 mm (from hardware revision 5) |
| Mounting/Installation | PCI slot (3,3 V) | |
| Conformity | RoHS | Yes |
| Conformance with EMC directives | CE sign | Yes |
| UKCA sign | Yes | |
| Emission | EN 55011 / EN BS 55011 (Radio disturbance characteristics – Limits and methods of measurement) | |
| Immunity | EN 61000-4-2 / EN BS 61000-4-2: (Electrostatic discharge test) | |
| EN 61000-4-3 / EN BS 61000-4-3 (Radiated, radio-frequency, electromagnetic field test) | ||
| EN 61000-4-4 / EN BS 61000-4-4 (Burst Electrical fast transients/burst test) | ||
| EN 61000-4-5 / EN BS 61000-4-5 (Surge test) | ||
| EN 61000-4-6 / EN BS 61000-4-6 (to conducted disturbances, induced by radio- frequency fields) | ||
| EN 61000-4-8 / EN BS 61000-4-8 (power frequency magnetic field test) | ||
| EN 61000-6-2 / EN BS 61000-6-2 (for industrial environments) | ||
| UL certification | UL | The device is certified according to UL 508 |
| UL file | UL-File-Nr. E221530 | |
| Configuration | Configuration software | Communication Studio |
| Download firmware and configuration | Device Explorer |
