Ổ cắm lắp mặt tủ MODLINK MSDD - header

Ổ cắm lắp mặt tủ MODLINK MSDD FRAME 4000-68213-0000000

– Khung đơn, kim loại
– Nắp trong suốt
– Dành cho hệ thống MODLINK MSDD
– Lắp mặt tủ điện
– 1xUSB, 1xSUB-D9, 1xRJ45

Ổ cắm lắp mặt tủ MODLINK MSDD FRAME 4000-68213-0000000 của Murrelektronik dùng để lắp trên mặt tủ điện, giúp dễ dàng trong việc bảo trì tủ điện mà không cần mở cửa tủ

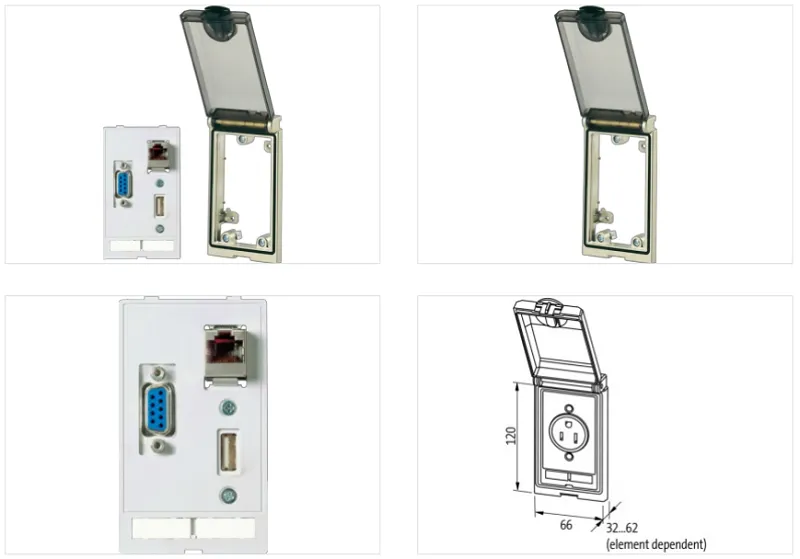

Ổ cắm lắp mặt tủ MODLINK MSDD - detail

  • Khung Single Metal
  • Nickeled/transparent
  • Dành cho hệ thống MODLINK MSDD
  • Lắp mặt tủ điện
  • 1xUSB, 1xSUB-D9, 1xRJ45

Sản phẩm tương tự

Frame

housing Fine zinc die casting
Lid PC
Coating housing surface finished
Color cover transparent
Suitable for installation wall thickness min. 1 mm
Suitable for installation wall thickness max. 5 mm
Degree of protection (EN IEC 60529) IP65
Operating temperature min. -10 °C
Operating temperature max. 60 °C
Storage temperature min. -25 °C

Shielding plate

Connection information Threaded hole M4
Tightening torque 0,9 Nm
Tightening torque tolerance ± 0,1 Nm

USB

USB specification 3.0
Looking techniques Snap-in connector
Data transmission rate max. 5.000 Mbit/s
Operating voltage AC 48 V
Operating voltage DC 48 V
Operating current 1,5 A
Operating voltage AC max. (UL-listed) 30 V
Operating voltage DC max. (UL-listed) 42,4 V

SUB-D9

Family construction form SUB-D9
Gender female
No. of poles 9
Looking techniques Standard UNC 4-40 screw thread bolt (EN 60807)
Family type Back side SUB-D9
Gender Rear male
Operating voltage AC 48 V
Operating voltage DC 48 V
Operating current 3 A
Operating voltage AC max. (UL-listed) 30 V
Operating voltage DC max. (UL-listed) 42,4 V
Current operating max. (UL) 175 mA

RJ45

Family construction form RJ45
Looking techniques Snap-in connector
Cable category min. Cat5e
Family type Back side RJ45
Operating voltage AC max. (UL-listed) 30 V
Operating voltage DC max. (UL-listed) 42,4 V
Current operating max. (UL) 175 mA
