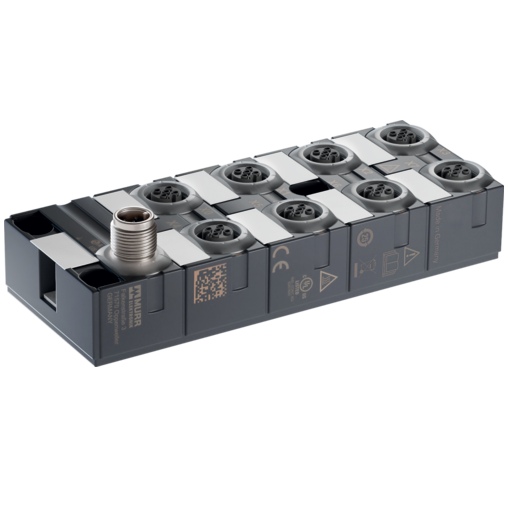

MVP12 IO-Link DIO16 Murrelektronik 59719 là IO-Link hub class A
IO-Link hub quản lý 16 digital inputs/ outputs, có thể cấu hình được
– 1 cổng IO-Link class A, M12
– 8 cổng tín hiệu 5-pole, A-cod., M12
– IP67
Thông số kỹ thuật MVP12 IO-Link DIO16 Murrelektronik 59719
ELECTRICAL DATA | SUPPLY
| Operating voltage DC | 24 V |
| Operating voltage US DC | 24 V |
| Operating voltage US DC min. | 18 V |
| Operating voltage US DC max. | 30 V |
| Current consumption max. | 40 mA |
| Total current US max. | 4 A |
ELECTRICAL DATA | INPUT
| Sensor current per input max. | 0,5 A |
| Type input | Type 1, Type 3 |
| Input filter time | 1 ms |
ELECTRICAL DATA | OUTPUT
| Output current per pin max. | 0,5 A |
INDUSTRIAL COMMUNICATION | IO-LINK
| IO-Link type | Device |
| Port Class | A |
| IO-Link revision ID | V1.1.2 |
| IO-Link transmission rate | COM3 (230.4 kbit/s) |
| IO-Link process data length input | 2 Bytes |
| IO-Link process data length output | 2 Bytes |
| IO-Link cycle time min. | 1 ms |
| IO-Link revision compatibility | V1.1.3 |
