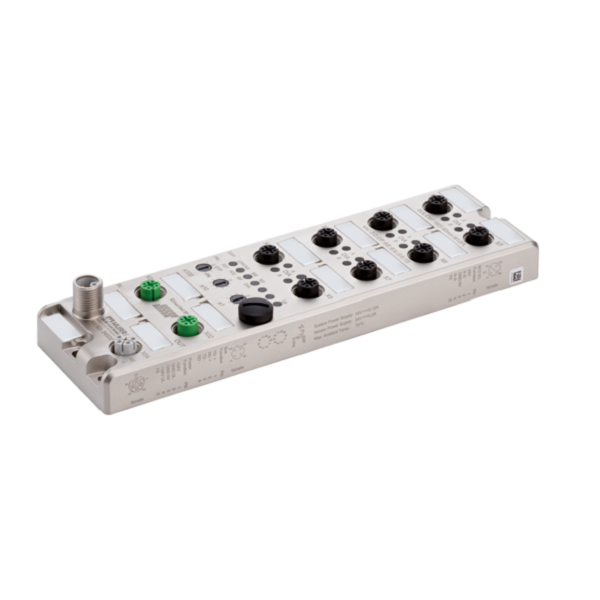

Murrelektronik SOLID67 IOL8 60mm M12L 5P 54504
– Mạng filedbus: Ethernet, Profinet
– Ngõ vào: PNP, 3-wire sensors/ công-tắc cơ, IO-Link Devices(IOL8)
– M12 Power, 5-chân, L-coded
– 2-hole screw mounting
– Điện áp hoạt động: 24 V DC
– IP67
Murrelektronik SOLID67 IOL8 60mm M12L 5P 54504: là một IO-Link Master Module, được thiết kế để kết nối và quản lý các thiết bị IO-Link
– Hỗ trợ mạng filedbus: Ethernet, Profinet
– Ngõ vào: PNP, 3-wire sensors/ công-tắc cơ, IO-Link Devices(IOL8)
– M12 Power, 5-chân, L-coded
– 2-hole screw mounting
– Điện áp làm việc: 24 V DC
– Kích thước: 200 x 60 x 43.1 mm
Thông số kỹ thuật – Murrelektronik SOLID67 IOL8 60mm M12L 5P 54504
Electrical data | Supply
| Norm operating voltage | EN 61131-2 |
| Operating voltage US DC | 24 V |
| Operating voltage UA DC | 24 V |
| Total current UA max. | 9 A |
| Total current US max. | 9 A |
Electrical data | Input
| Overload resistant | yes |
| Short-circuit protected | yes |
| Type input | PNP, for 3-wire sensors or mechanical switches, IO-Link Devices |
| Current carrying capacity max. | 0,5 A |
Electrical data | Output
| Overload resistant | yes |
| Short-circuit protected | yes |
| Output current per pin max. | 0.5 A (PIN 4, X1…X8); 2 A (PIN 2/5 Uaux, X5…X8) |
| Total current outputs max. | 9 A |
Industrial communication
| Supported protocol | EtherNet/IP, PROFINET |
Industrial communication | Ethernet/IP
| DLR (Device Level Ring) | yes |
| EtherNet/IP addressing | BOOTP, DHCP, Rotary switch |
Industrial communication | Profinet
| Number of active connections (IO controller) max. | 2 |
| IRT (network communication) | yes |
| MRP client | yes |
| PROFINET Netload Class | II |
| PROFINET addressing | DCP |
| PROFINET conformance class | C |
| PROFINET specification | V2.3 |
| Shared device/input | yes |
Industrial communication | IO-Link
| IO-Link type | 8× Master |
| Port Class | A, B |
| IO-Link revision ID | V1.1 |
| IO-Link transmission rate | COM1, COM2, COM3 |
| IO-Link process data length input | 32 Bytes |
| IO-Link process data length output | 32 Bytes |
| Automatic baudrate detection | yes |
Diagnostics
| Actuator warning | via LED and BUS |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| IO-Link events | No voltage, Undervoltage supply |
| Short circuit diagnosis | yes |
| LED display | Ethernet connection/data traffic |
| Cable break | per port |
| Overload diagnosis | yes |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
| Galvanic separation (operating voltage) | yes |
Mechanical data | Mounting data
| Suitable for mounting type | 2-hole screw mounting |
| Height | 43,1 mm |
| Width | 60 mm |
| Depth | 200 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
