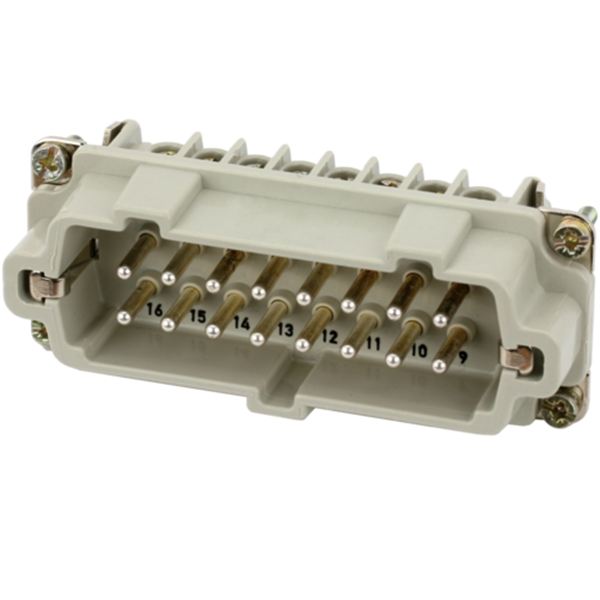

Murrelektronik đầu nối heavy duty B16, phần ruột, female 16-pole 70MH-EB016-FS03020
– Đầu nối kiểu vặn vít 16 cực 16 A, female, cỡ B16
– Số AWG min 20/ Số AWG max 14

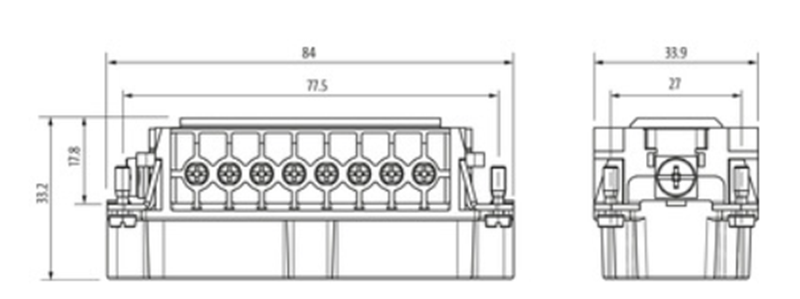

– Kích thước (mm): 33.2 x 33.9 x 63.
Murrelektronik đầu nối heavy duty B16, phần ruột, female 16-pole 70MH-EB016-FS03020 là một đầu nối công nghiệp (heavy duty connector) phần ruột, đầu nối cái (female).
– Kiểu vặn vít (screw terminal), 16 cực, cỡ B16
– Chịu tải 16 A
– AWG 20 min/ A 14 max
– Kích thước (mm): 33.2 x 33.9 x 63
Murrelektronik đầu nối heavy duty B16, phần ruột, female 16-pole 70MH-EB016-FS03020 – THÔNG SỐ KỸ THUẬT
Electrical data | Supply
| Operating voltage AC | 500 V |
| Operating voltage DC | 500 V |
| Operating current | 16 A |
Installation
| Connection cross section min. | 0,5 mm² |
| Connection cross section max. | 2,5 mm² |
| AWG number min. | 20 |
| AWG number max. | 14 |
Installation | Connection
| Stripping length | 7,5 mm |
| Wire insulation diameter min. | 3,6 mm |
| Connection | Screw terminals SK |
| Tightening torque clamping screw | 0,5 Nm |
| Gender | male |
| Mating cycles min. | 500 |
Installation | Pin assignment
| No. of poles | 16 + PE |
Device protection | Electrical
| Pollution Degree | 3 |
| Rated surge voltage | 6 kV |
| Insulation resistance min. | 100 MΩ |
| Material group (IEC 60664-1) | IIIb |
| Overvoltage category (EN 60664-1) | III |
| Overvoltage category (EN 60950-1) | III |
Mechanical data
| Holding force min. | 150 N |
| Pulling force max. | 150 N |
Mechanical data | Material data
| Coating contact | silver-plated |
| Combustibility class (UL94) | V-0 |
| Material contact | Brass |
| Material contact carrier | PA GF |
Mechanical data | Mounting data
| Size | B16 |
| Height | 33,2 mm |
| Width | 33,9 mm |
| Depth | 63,4 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 125 °C |
| Climatic category (EN IEC 60068-1) | 40/125/10 |
