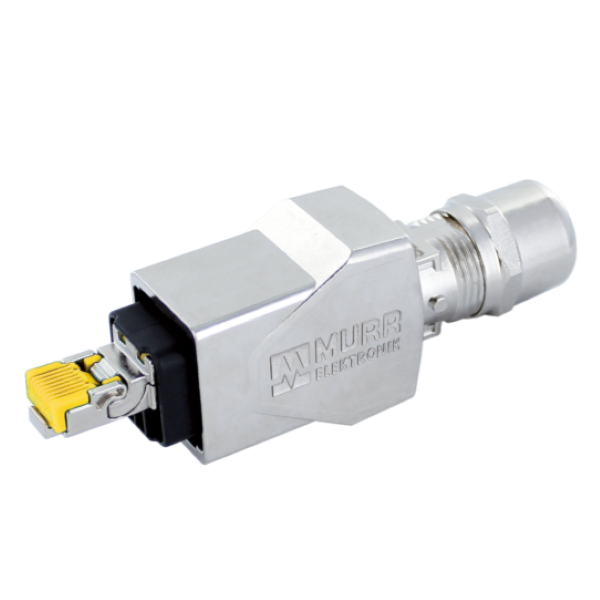

Murrelektronik 7000-99581-0000000
– Là đầu nối RJ45, 0°
– Male, 8 chân
– IDC terminal
– CAT6A, tốc độ truyền dữ liệu tối đa 10 GBit/s
– Có bọc lớp chống nhiễu
– IP20
Murrelektronik 7000-99581-0000000 là đầu nối RJ45, 8 chân, male, 0° công nghệ kết nối nhanh, IDC terminal, có bọc lớp chống nhiễu, lắp đặt nhanh chóng, linh hoạt
(8-pol., AWG23-22, 5,5 – 10mm, shielded, CAT6A)
Thông số kỹ thuật – Murrelektronik 7000-99581-0000000
Side 1
| Family construction form | RJ45 |
| Material contact | Bronze |
| No. of poles | 8 |
Electrical data | Supply
| Operating voltage DC (UL-listed) | 56,5 V |
| Operating current max. | 1,75 A |
Industrial communication
| Transfer parameters | CAT6A |
| Data transmission rate max. | 10 GBit/s |
Installation | Connection
| Connection | Cut clamps IDC |
| Tightening torque | 2,5 Nm |
Device protection
| Shielded | yes |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP20 |
| Pollution Degree | 2 |
| Insulation resistance min. | 500 MΩ |
| Overvoltage category (EN 60950-1) | I |
Mechanical data | Material data
| Coating contact | nickel plated |
| Combustibility class (UL94) | V-0 |
| Material gasket | NBR |
| Material contact carrier | PC |
| Locking material | Copper alloy |
Mechanical data | Mounting data
| Clamping range min. | 6 mm |
| Clamping range max. | 10 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 70 °C |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
