MQTT broker 700-462-MQB01

– MQTT Broker đầy đủ tính năng
– 4 cổng Ethernet 10/100 Mbit/s
– Chế độ Switch hoặc Firewall
– TLS Encryption, User/ACL management
– Lắp DIN-rail nhỏ gọn

MQTT broker 700-462-MQB01 của Helmholz hỗ trợ MQTT V3.1.1 & V5. Có 4 cổng Ethernet. Các chế độ: Switch/Firewall. Cấu hình web. TLS encryption

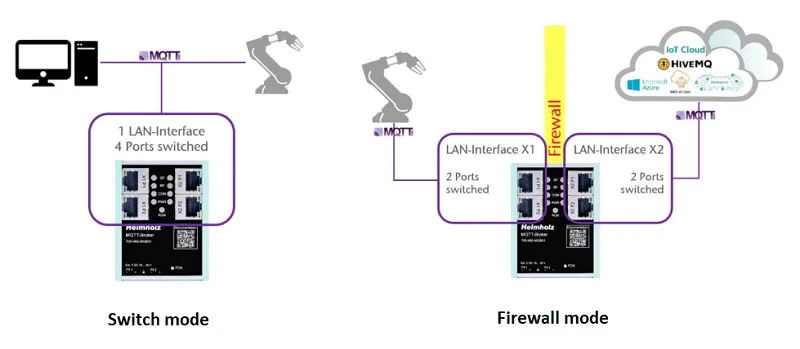

MQTT broker 700-462-MQB01 - mode

  • Kích thước: 32.5 × 58.5 × 76 mm
  • Nguồn: 24 V DC (18…30 V), có cổng cấp nguồn redundant
  • Dòng tiêu thụ: max. 140 mA
  • Nhiệt độ: 0…+60 °C
  • IP20

Sản phẩm khác

General information

  • Order number: 700-462-MQB01
  • Article name: MQTT-Broker
  • Scope of delivery: MQTT-Broker with power supply plug
  • Dimensions (DxWxH): 32,5 x 58,5 x 76 mm
  • Weight: Approx. 135 g

Ethernet interface(X1/X2)

  • Number / Connection: 4 / integrated Switch
  • Connection: RJ45
  • Transmission rate: 10/100 Mbit/s
  • Protocols: MQTT V3.1.1 & V5; HTTPS
  • Features: TLS Encryption, User management, ACL management

Status indication

  • Functional status: 9 LEDs
  • Ethernet status: 8 LEDs, two-colored

Power supply

  • Voltage supply: 2x 24 V DC, 18 … 30 V DC, redundant
  • Current draw: max. 140 mA at DC 24 V
  • Power dissipation: max. 3,4 W

Ambient conditions

  • Ambient temperature: 0 °C … +60°C
  • Transport and storage temperature: -40 °C … +85 °C
  • Relative air humidity: 95 % r H without condensation
  • Protection rating: IP20
  • Pollution degree: 2
  • Mounting position: As desired
  • Approvals: CE
