– Module I/O phân tán Profinet IRT
– 12 ngõ vào/ra số + 4 cổng IO-Link Master
– Vỏ kim loại đúc kín, IP67
– Fast Start-Up
Mô-đun IO phân tán mạng Profinet 12DIO IO-link MVK 55532 của Murrelektronik là module I/O phân tán IP67 vỏ kim loại hỗ trợ Profinet IRT, 12 ngõ vào/ra số và 4 cổng IO-Link Master, phù hợp môi trường khắc nghiệt
Electrical data | Supply
| Norm operating voltage | IEC/EN 61131-2 |
| Operating voltage US DC | 24 V |
| Total current US max. | 9 A |
| Operating voltage UA DC | 24 V |
| Total current UA max. | 9 A |
Electrical data | Input
| Sensor current US per input max. | 0,2 A |
| Sensor current US per IO-Link port max. | 1 A |
| Short-circuit protected | Yes |
| Overload resistant | Yes |
| Type input | for 3-wire sensors or mechanical switches, IO-Link Devices, PNP |
Electrical data | Output
| Output current per pin max. | 1,6 A |
| Overload resistant | Yes |
| Short-circuit protected | Yes |
| Lamp load | 10 W |
Industrial communication | Bus data
| Supported protocol | PROFINET |
Industrial communication | PROFINET
| Conformance Class | C |
| addressing | DCP |
| Netload Class | III |
| Specification | V2.3 |
| IRT-network communication | Yes |
| MRP client | Yes |
| Fast-Start-Up (FSU) | Yes |
| Fast start up time max. | 0,5 s |
| Shared device/input | Yes |
| Number of active connections (IO controller) max. | 2 |
Industrial communication | IO-Link
| type | 4× Master |
| Port Class | A, B |
| revision ID | V1.1.2 |
| transmission rate | COM1, COM2, COM3 |
| process data length input | 32 byte |
| process data length output | 32 byte |
| Automatic baudrate detection | automatic |
Diagnostics
| Actuator warning | per channel via LED and BUS |
| Short circuit diagnosis | Yes |
| Overload diagnosis | Yes |
| Cable break | per port |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| LED display | Ethernet connection/data traffic |
| IO-Link events | Undervoltage supply, No voltage |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |

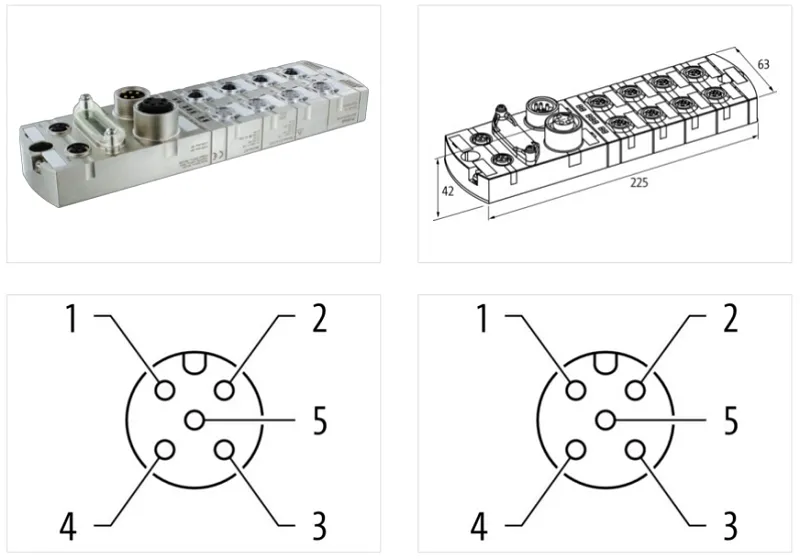

Mechanical data | Mounting data
| Height | 42 mm |
| Width | 63 mm |
| Depth | 225 mm |
| Suitable for mounting type | 2-hole screw mounting |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 60 °C |
| Ambient temperature (storage, transport) | -25 °C … 70 °C |
