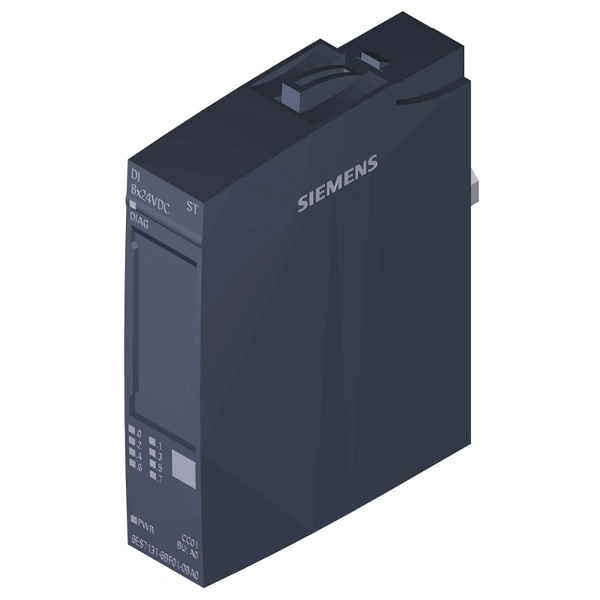

Mô-đun I/O ET 200SP 8DI 24VDC 6ES7131-6BF01-0BA0
– 8 ngõ vào digital 24VDC
– Sink input (PNP, P-reading)
– Bảo vệ ngắn mạch

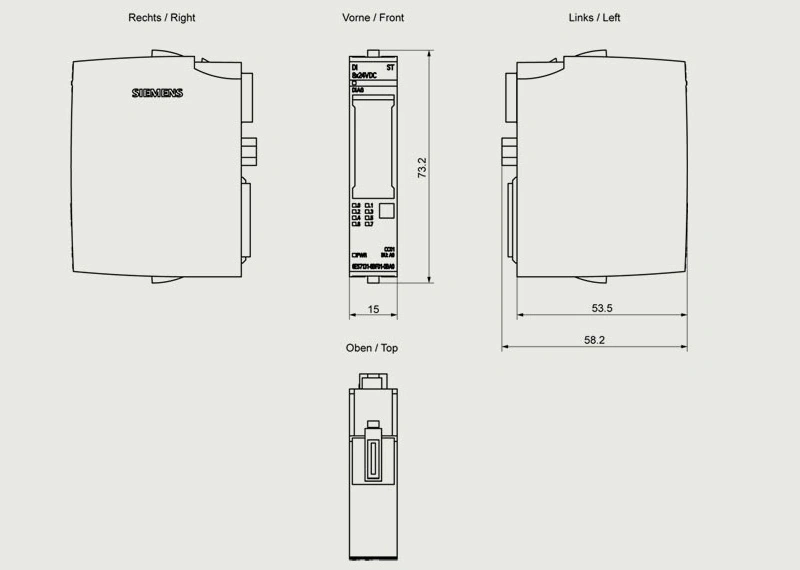

– Kích thước: 73H x 15W x 58D mm
Mô-đun I/O ET 200SP 8DI 24VDC 6ES7131-6BF01-0BA0 là mô-đun electronic I/O mở rộng thuộc field I/O ET 200SP của Siemens
– 8 ngõ vào digital 24VDC
– Sink input (PNP, P-reading)
– Bảo vệ ngắn mạch
– Kích thước: 73H x 15W x 58D mm
Thông số kỹ thuật – Mô-đun I/O ET 200SP 8DI 24VDC 6ES7131-6BF01-0BA0
| Product | |||
| Article Number (Market Facing Number) | 6ES7131-6BF01-0BA0 | ||
| Product Description | SIMATIC ET 200SP, Digital input module, DI 8x 24V DC Standard, type 3 (IEC 61131), sink input, (PNP, P-reading), Packing unit: 1 piece, fits to BU-type A0, Colour Code CC01, input delay time 0,05..20ms, module diagnostics for: short-circuit of sensor supply, wire break, supply voltage | ||
| Product family | Digital input modules | ||
| Product Lifecycle (PLM) | PM300:Active Product | ||
| Price data | |||
| Price Group | 255 | ||
| List Price | |||
| Customer Price | |||
| Metal Factor | None | ||
| Delivery information | |||
| Export Control Regulations | AL : N / ECCN : N | ||
| Standard lead time ex-works | 1 Day/Days | ||
| Net Weight (kg) | 0,034 Kg | ||
| Packaging Dimension | 6,80 x 7,80 x 2,40 | ||
| Package size unit of measure | CM | ||
| Quantity Unit | 1 Piece | ||
| Packaging Quantity | 1 | ||
| Additional Product Information | |||
| EAN | 4047623408598 | ||
| UPC | 804766528088 | ||
| Commodity Code | 85389091 | ||
| LKZ_FDB/ CatalogID | ST76 | ||
| Product Group | 4520 | ||
| Group Code | R135 | ||
| Country of origin | Germany | ||
| Compliance with the substance restrictions according to RoHS directive | Since: 15.09.2017 | ||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
||
