Gateway Profibus-DP/AS-i Murrelektronik 556612
– Gateway-Singlemaster
– AS/PROFIBUS DP interface
– AS-i Specification 2.1
– Điện áp: 30 V DC
– IP20
Gateway Profibus-DP/AS-i Murrelektronik 556612: là một thiết bị dùng để kết nối mạng Profibus-DP với mạng AS-Interface (AS-i)
– Gateway-Singlemaster
– AS-i/PROFIBUS DP interface
– AS-i Specification 2.1
– Điện áp: 30 V DC
Thông số kỹ thuật – Gateway Profibus-DP/AS-i Murrelektronik 556612
Electrical data
| Rated operating current AS-Interface max. | 200 mA |
Electrical data | Supply
| Operating voltage DC | 30 V |
Industrial communication | Bus data
| Address range default setting | 3 |
| Address range min. | 1 |
| Address range max. | 126 |
| Address setting type | Buttons, PROFIBUS |
| Automatic baudrate detection | yes |
| Baud rate min. | 9,6 kBaud |
| Baud rate max. | 12 MBaud |
Industrial communication | AS-Interface
| AS-i specification | V2.11 |
| Number of slaves max. | 62 |
| Diagnostic interface serial | PS2/RS232 |
| Cycle time AS-i | 150 µs × (number of slaves + 2) |
Industrial communication | Profibus
| PROFIBUS function | Illustration of AS-Interface slaves as I/O process data in PROFIBUS DP, full diagnostic configuration via DP-master |
Installation | Connection
| Family construction form | SUB-D9 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP20 |
| Rated insulation voltage | 500 V |
Mechanical data
| Number of operating buttons | 4 |
| Function operating buttons | ESC, Mode, OK, Set |
Mechanical data | Mounting data
| Mounting method | geschnappt |
| Suitable for mounting type | mounting rail, (EN 60715) |

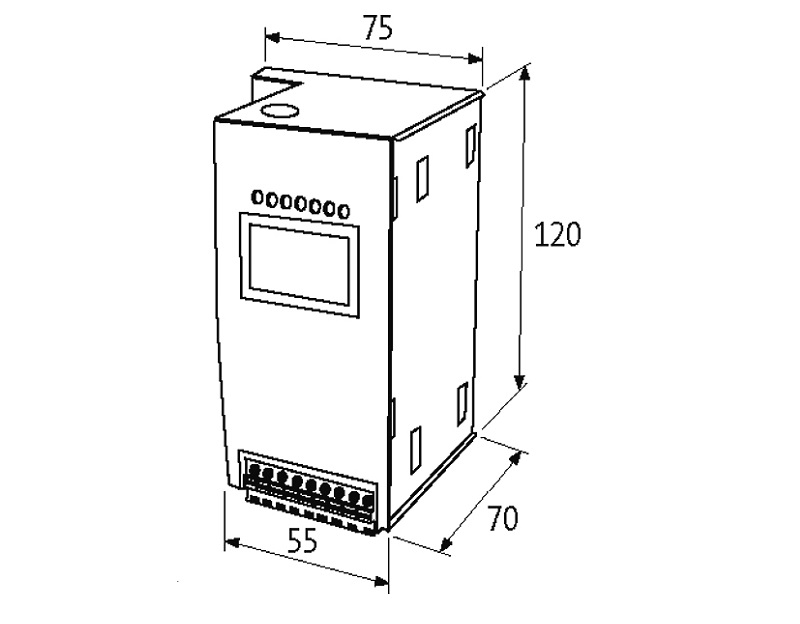

| Height | 120 mm |
| Width | 75 mm |
| Depth | 83 mm |
Environmental characteristics | Climatic
| Operating temperature min. | 0 °C |
| Operating temperature max. | 55 °C |
| Storage temperature min. | -20 °C |
| Storage temperature max. | 85 °C |
Conformity
| EMC | EN 50081 |
| Low Voltage Directive | EN 50295 |
