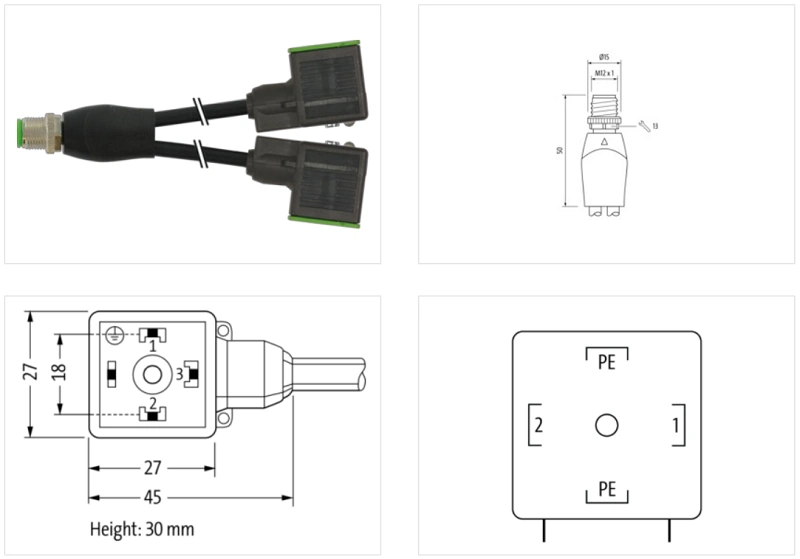

Đầu nối Y M12 male / 2x valve plug A-18mm 7000-42401-6160060 với cáp PVC 3×0.75 bk dài 0.6m là giải pháp phân nhánh tín hiệu van điện từ hiệu quả
Thông số kỹ thuật

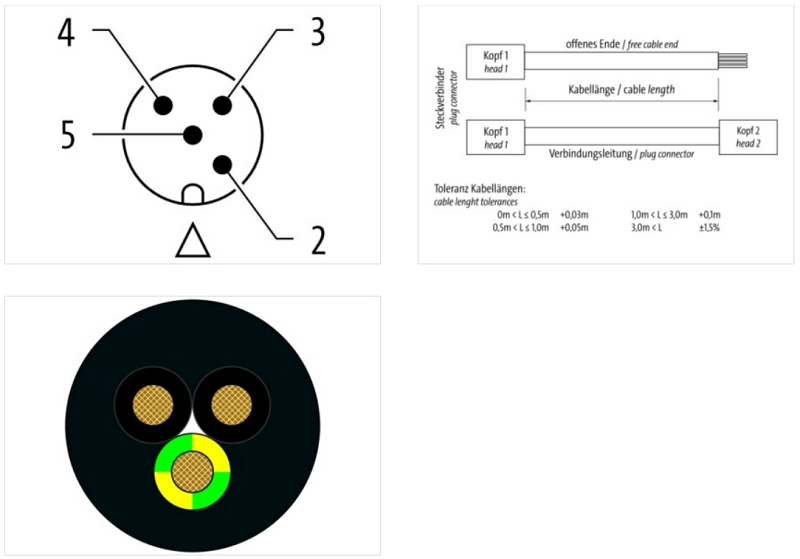

| Cable length | 0,60 m |
Side 1
| Family construction form | Valve connector form CI |
| No. of poles | 4 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,4 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PBT |
| Material contact | Copper alloy |
| Coating contact | silver-plated |
Side 2
| Family construction form | Valve connector form CI |
| No. of poles | 4 |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,4 Nm |
| Material | PBT |
| Coating contact | silver-plated |
Side 3
| Family construction form | M12 |
| No. of poles | 4 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M3x31 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Coating contact | gold plated |
Electrical data | Supply
| Operating voltage AC | 24 V |
| Operating voltage AC min. | 19,2 V |
| Operating voltage AC max. | 28,8 V |
| Operating voltage DC | 24 V |
| Operating voltage DC min. | 18 V |
| Operating voltage DC max. | 30 V |
| Current operating per contact max. | 4 A |
| Cut-off peak voltage max. | 55 V |
| Current consumption max. | 15 mA |
Diagnostics
| Status indication LED | yellow |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Additional suppressor | Diode, Z-Diode |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
Mechanical data | Material data
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Gasket | PUR |
Mechanical data | Mounting data
| Mounting method | inserted, screwed |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN IEC 61076-2-101 (M12) |
