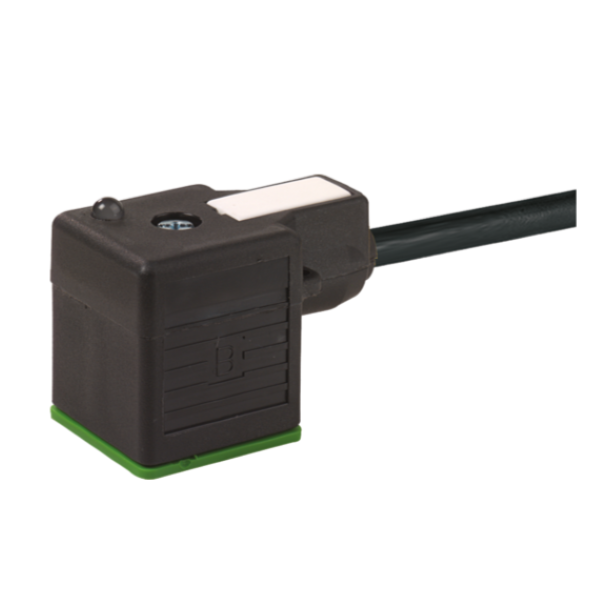

Đầu nối van Murrelektronik 7000-18021-6160500 dùng cho van điện từ, có sẵn cáp dài 5m, 4 chân, Form A (18 mm), họ MSUD
(PVC 3×0.75 bk 5m)
– Có LED báo trạng thái
– Có chân PE giúp bảo về an toàn cho người sử dụng và thiết bị
– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt
Đầu nối van Murrelektronik 7000-18021-6160500
Đầu nối van Murrelektronik 7000-18021-6160500
– Dùng cho van điện từ, có sẵn cáp dài 5m
– Form A (18 mm), 4 chân, họ MSUD
– Nguồn cấp: 24 V AC ±20% / DC ±25%
– Có LED báo trạng thái
– IP67

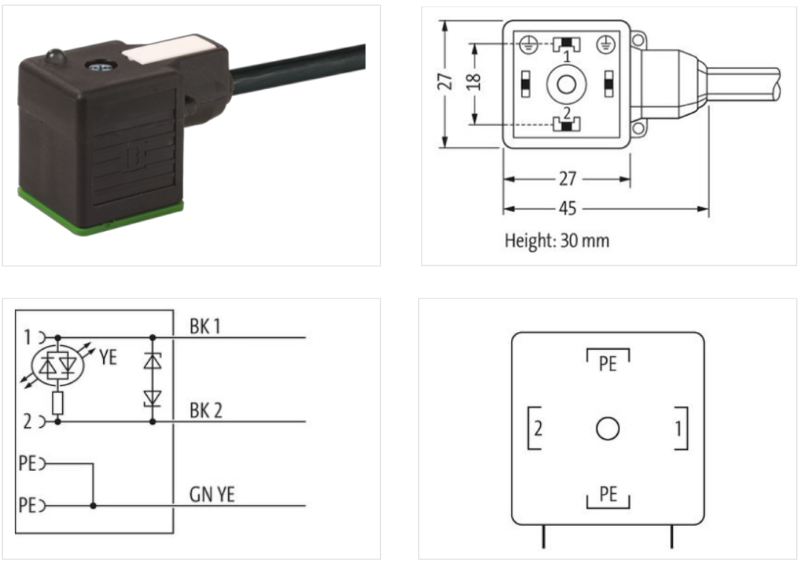

Thông số kỹ thuật – Đầu nối van Murrelektronik 7000-18021-6160500
| Cable length | 5 m |
Side 1
| Tightening torque | 0,4 Nm |
| Mounting method | inserted, screwed |
| Family construction form | MSUD A |
| Thread | M3 |
| Material | PBT |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data
| Drop-out delay time max. | 20 ms |
Electrical data | Supply
| Operating voltage AC | 24 V |
| Operating voltage AC min. | 19,2 V |
| Operating voltage AC max. | 28,8 V |
| Operating voltage DC | 24 V |
| Operating voltage DC min. | 18 V |
| Operating voltage DC max. | 30 V |
| Cut-off peak voltage max. | 55 V |
| Current operating per contact max. | 4 A |
| Current consumption max. | 15 mA |
Diagnostics
| Status indication LED | yellow |
Installation | Connection
| Mounting set | M3 |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
| Additional suppressor | Diode, Z-Diode |
Mechanical data | Material data
| Coating locking | galvanized |
| Coating of fitting | galvanized |
| Color housing | black |
| Material gasket | PUR |
| Locking material | Steel |
| Material screw connection | Steel |
Mechanical data | Mounting data
| Mounting method | inserted, screwed |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
