Đầu nối van form C-8mm 7000-30055-0000000 - header

Đầu nối van form C-8mm screw terminal SVS Eco

– Valve plug form C 8 mm
– Chân: 2+PE
– Screw terminal
– IP65
– 250 V / 6 A

Đầu nối van form C-8mm screw terminal SVS Eco 7000-30055-0000000 của Murrelektronik dùng cho van điện từ form C (sub-micro). Kết nối kiểu vít (screw terminal), IP65

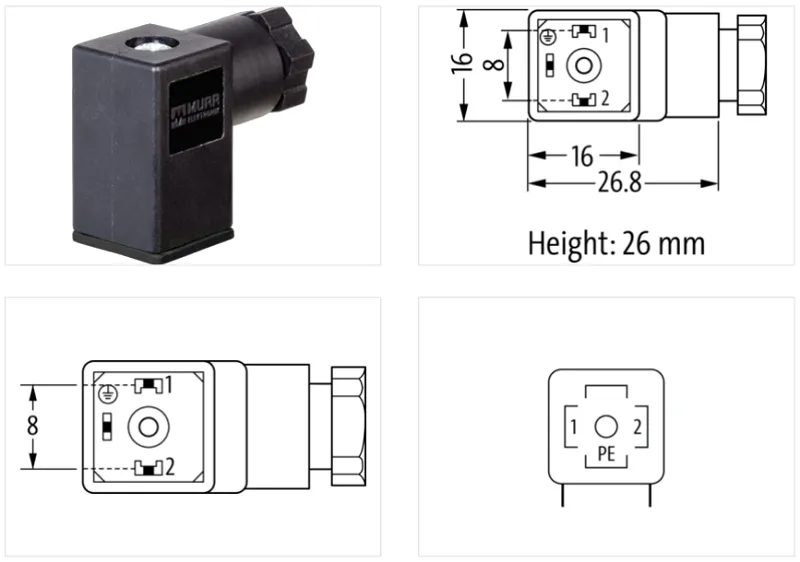

Đầu nối van form C-8mm 7000-30055-0000000 - detail1

  • Form C (sub-micro)
  • Tiếm điểm (chân): 2 + PE
  • Điện áp 250 V AC/DC
  • Dòng max 6 A

Đầu nối van form C-8mm 7000-30055-0000000 - detail2

  • Housing PA6 GF30
  • Kích thước 16×16 mm
  • IP65

Đầu nối van điện từ

Side 1

Family construction form Valve connector form C
Mounting method pluggable, screwed
Degree of protection (EN IEC 60529) IP65

Electrical data | Supply

Operating voltage AC max. 250 V
Operating voltage DC max. 250 V
Current operating per contact max. 6 A

Installation

Connection cross section max. 0,5 mm²

Installation | Connection

Tightening torque 0,4 Nm
Tightening torque tolerance ± 0,1 Nm
Tightening torque clamping screw 0,2 Nm
Mounting set M12 x 1.5

Installation | Pin assignment

No. of poles 2 + PE

Device protection | Electrical

Additional condition protection degree inserted, screwed

Mechanical data | Material data

Gasket NBR

Mechanical data | Mounting data

Fastening screw M2.5
Clamping range min. 4 mm
Clamping range max. 6 mm

Environmental characteristics | Climatic

Operating temperature min. -40 °C
Operating temperature max. 90 °C

Important installation notes

Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.



Datasheet
