– Đầu nối van form BI 11 mm
– 2 cực + PE, đấu dây kiểu vặn vít (screw terminal)
– Tiết diện dây 0,5–1,5 mm²
– Cấp bảo vệ IP65

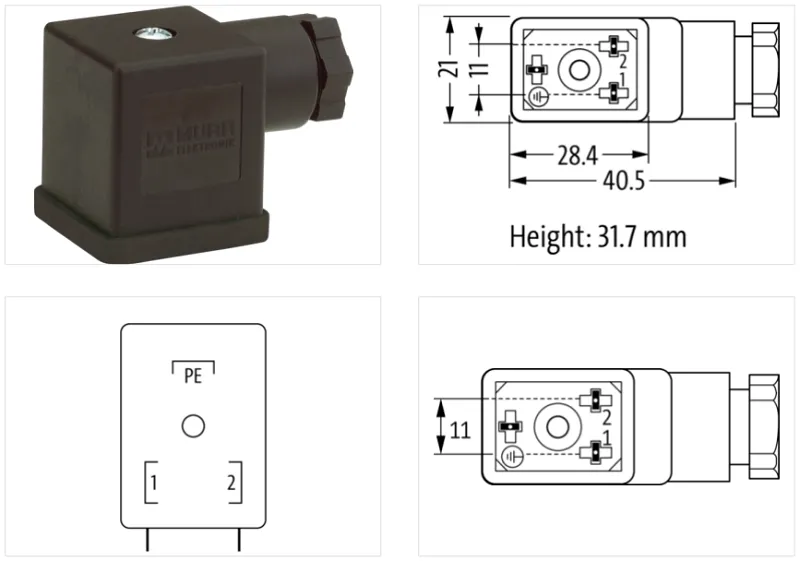

Đầu nối van form BI-11mm SVS Eco 7000-30005-0000000 của Murrelektronik là đầu nối van form BI 11 mm, 2 cực + PE, đấu dây kiểu vặn vít, cấp bảo vệ IP65, phù hợp kết nối van điện từ, công tắc áp lực
Side 1
| Family construction form | Valve connector form BI |
| Mounting method | pluggable, screwed |
| Degree of protection (EN IEC 60529) | IP65 |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 10 A |
Installation
| Connection cross section min. | 0,5 mm² |
| Connection cross section max. | 1,5 mm² |
Installation | Connection
| Tightening torque | 0,4 Nm |
| Tightening torque tolerance | ± 0,1 Nm |
| Tightening torque clamping screw | 0,2 Nm |
| Mounting set | M16 x 1.5 |
Installation | Pin assignment
| No. of poles | 2 + PE |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
Mechanical data | Material data
| housing | PA |
| Color housing | black |
| Gasket | NBR |
Mechanical data | Mounting data
| Fastening screw | M3x31 |
| Clamping range min. | 6 mm |
| Clamping range max. | 8 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 90 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
