Đầu nối van form BI-11mm có 5m cáp PUR 7000-11001-2260500

– Form BI-11mm
– Cáp PUR 5m
– Valve connector họ MSUD

Đầu nối van form BI-11mm có 5m cáp PUR 7000-11001-2260500 của Murrelektronik kèm cáp PUR 5m. Thiết kế dành cho van solenoid trong công nghiệp

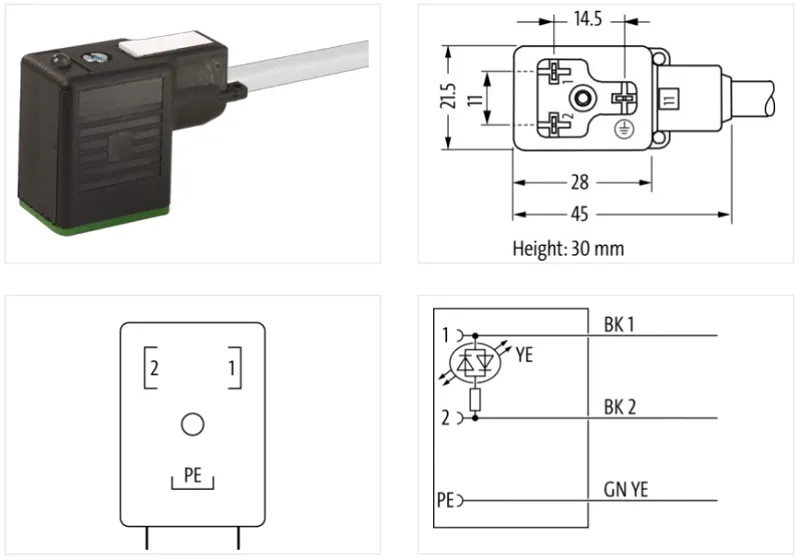

Đầu nối van form BI-11mm có 5m cáp PUR - detail 1

  • Form BI-11mm
  • Chiều dài cáp: 5m

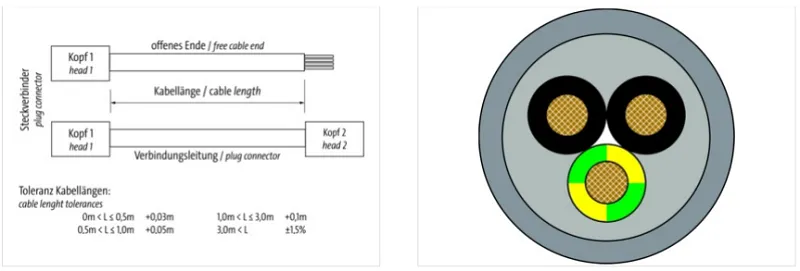

Đầu nối van form BI-11mm có 5m cáp PUR - detail 2

  • PUR 3×0.75 gy UL/CSA
  • Valve plug MSUD

Đầu nối van khác

Cable length 5,00 m

Side 1

Family construction form Valve connector form BI
No. of poles 3
Gender female
Mounting method inserted, screwed
Threaded hole M3x31
Tightening torque 0,4 Nm
Material PBT
Degree of protection (EN IEC 60529) IP67

Electrical data | Supply

Operating voltage AC 24 V
Operating voltage AC min. 18 V
Operating voltage AC max. 30 V
Operating voltage DC 24 V
Operating voltage DC min. 18 V
Operating voltage DC max. 30 V
Current operating per contact max. 4 A

Installation | Connection

Mounting set M3x31

Device protection | Electrical

Additional condition protection degree inserted, screwed
Pollution Degree 3
Rated surge voltage 0,8 kV

Mechanical data | Material data

housing Plastic
Color housing black
Screw connection Steel
Coating of fitting galvanized

Mechanical data | Mounting data

Mounting method inserted, screwed

Environmental characteristics | Climatic

Operating temperature min. -25 °C
Operating temperature max. 85 °C
Additional condition temperature range depending on cable quality

Important installation notes

Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
