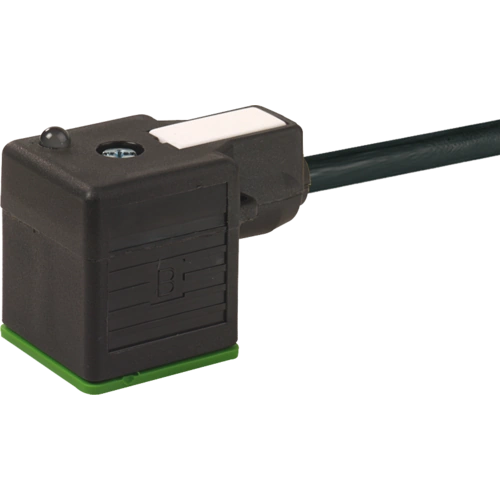

Đầu nối van form A có 3m cáp MSUD 7000-18021-6260300

– Cáp PUR dài 3m
– Đầu nối van form A
– Độ bền cao, đạt chuẩn UL/CSA

Đầu nối van form A có 3m cáp MSUD 7000-18021-6260300 của Murrelektronik: cáp PUR 3×0.75 bk dài 3m, chuẩn UL/CSA. Dùng để kết nối tín hiệu van điện từ trong hệ khí nén/thủy lực…

Đầu nối van form A có 3m cáp - detail1

  • Đầu nối van form A 18mm
  • Cáp PUR 3×0.75 bk, chuẩn UL/CSA

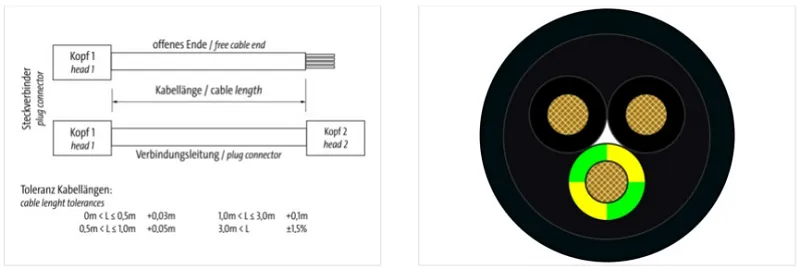

  • Chiều dài cáp 3m (with open-ended wires)

Đầu nối van form A có 3m cáp - detail2

  • Chịu dầu, hóa chất, dùng được cho xích kéo

Đầu nối van khác

Cable length 3,00 m

Side 1

Family construction form Valve connector form A
No. of poles 4
Gender female
Mounting method inserted, screwed
Threaded hole M3x31
Tightening torque 0,4 Nm
Material PBT
Degree of protection (EN IEC 60529) IP67

Electrical data

Drop-out delay time max. 20 ms

Electrical data | Supply

Operating voltage AC 24 V
Operating voltage AC min. 19,2 V
Operating voltage AC max. 28,8 V
Operating voltage DC 24 V
Operating voltage DC min. 18 V
Operating voltage DC max. 30 V
Current operating per contact max. 4 A
Cut-off peak voltage max. 55 V
Current consumption max. 15 mA

Diagnostics

Status indication LED yellow

Installation | Connection

Mounting set M3x31

Device protection | Electrical

Additional condition protection degree inserted, screwed
Pollution Degree 3
Additional suppressor Diode, Z-Diode
Rated surge voltage 0,8 kV
Material group (IEC 60664-1) I

Mechanical data | Material data

Color housing black
Screw connection Steel
Coating of fitting galvanized
Locking material Steel
Coating locking galvanized
Gasket PUR

Mechanical data | Mounting data

Mounting method inserted, screwed

Environmental characteristics | Climatic

Operating temperature min. -25 °C
Operating temperature max. 85 °C
Additional condition temperature range depending on cable quality

Important installation notes

Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties



Datasheet
