Đầu nối van form A-18mm có 5m cáp PUR 7000-18061-2260500

– Đầu nối van form A-18mm
– Có cáp PUR 5m
– Đạt chuẩn UL/CSA
– Dùng cho van điện từ

Đầu nối van form A-18mm có 5m cáp PUR 7000-18061-2260500 của Murrelektronik kèm cáp PUR 5m. Dùng để kết nối van điện từ, công tắc áp lực, chịu môi trường công nghiệp

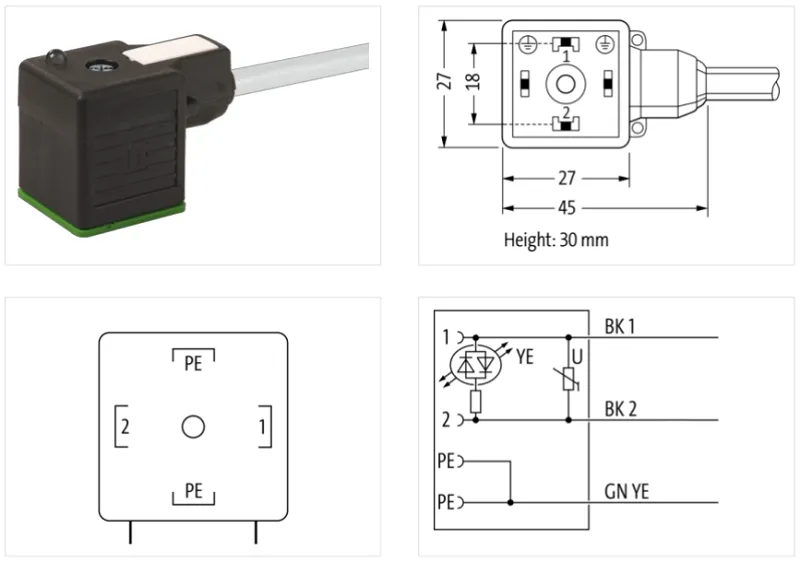

Đầu nối van form A-18mm có 5m cáp - detail 1

  • Form A-18mm
  • Chiều dài cáp: 5m
  • Vật liệu: PUR
  • Kiểu cách: 3×0.75 gy UL/CSA

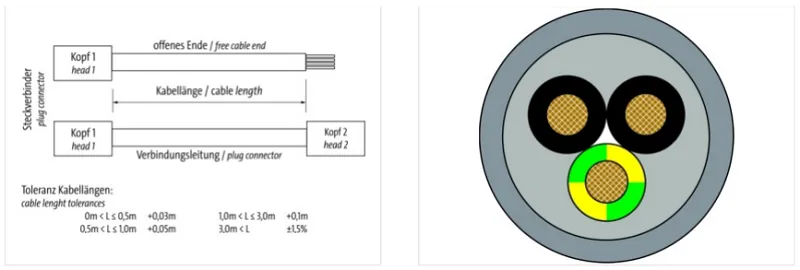

Đầu nối van form A-18mm có 5m cáp - detail 2

  • Thuộc series valve plug MSUD

Sản phẩm khác

Cable length 5,00 m

Side 1

Family construction form Valve connector form A
No. of poles 4
Gender female
Mounting method inserted, screwed
Threaded hole M3x31
Tightening torque 0,4 Nm
Material PBT
Degree of protection (EN IEC 60529) IP67

Electrical data

Drop-out delay time max. 20 ms

Electrical data | Supply

Operating voltage AC 230 V
Operating voltage AC min. 207 V
Operating voltage AC max. 253 V
Operating voltage DC 230 V
Operating voltage DC min. 207 V
Operating voltage DC max. 253 V
Current operating per contact max. 4 A
Cut-off peak voltage max. 560 V

Installation | Connection

Mounting set M3x31

Device protection | Electrical

Additional condition protection degree inserted, screwed
Pollution Degree 3

Mechanical data | Material data

housing Plastic
Color housing black
Screw connection Steel
Coating of fitting galvanized

Mechanical data | Mounting data

Mounting method inserted, screwed

Environmental characteristics | Climatic

Operating temperature min. -25 °C
Operating temperature max. 85 °C
Additional condition temperature range depending on cable quality

Important installation notes

Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
