Đầu nối van điện từ Murrelektronik 7000-29961-0000000

– Valve plug BI 11 mm
– Field-wireable
– Screw terminal

Đầu nối van điện từ Murrelektronik 7000-29961-0000000 là valve điện từ họ SVS form BI 11 mm, field-wireable, 230V LED+VDR M16x1.5

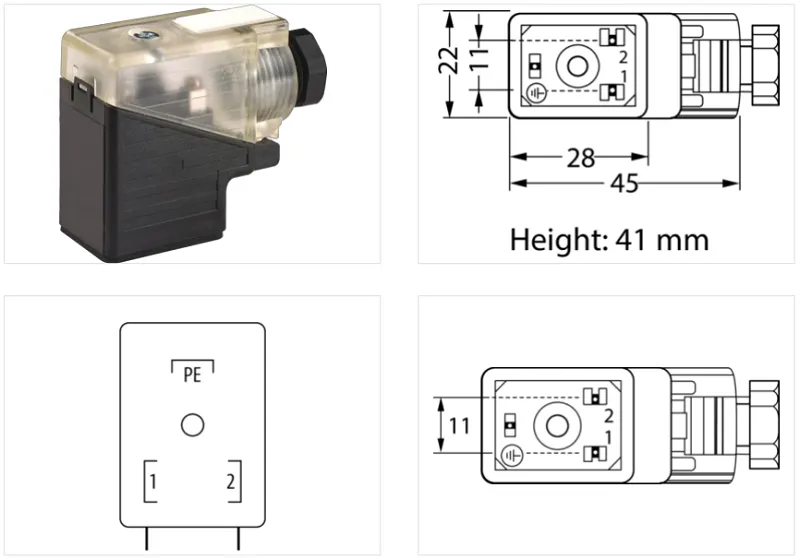

Đầu nối van điện từ Murrelektronik 7000-29961-0000000 - detail1

  • Valve plug form BI 11 mm
  • Field-wireable
  • Screw terminal

Đầu nối van điện từ Murrelektronik 7000-29961-0000000 - detail2

  • Phù hợp với van điện từ
  • IP65

Đầu nối van điện từ



Side 1

Family construction form Valve connector form BI
Mounting method pluggable, screwed
Degree of protection (EN IEC 60529) IP65

Electrical data

Drop-out delay time max. 15 ms
Holding power max. 50 W

Electrical data | Supply

Operating voltage AC 230 V
Operating voltage AC min. 207 V
Operating voltage AC max. 253 V
Operating voltage DC 230 V
Operating voltage DC min. 207 V
Operating voltage DC max. 253 V
Current operating per contact max. 1 A
Cut-off peak voltage max. 450 V
Current consumption max. 12 mA

Diagnostics

Status indication LED yellow

Installation

Connection cross section max. 1,5 mm²

Installation | Connection

Tightening torque 0,4 Nm
Mounting set M16 x 1.5

Device protection | Electrical

Additional condition protection degree locked, with screw connection, inserted

Mechanical data | Mounting data

Fastening screw M3x31
Clamping range min. 5 mm
Clamping range max. 10 mm

Environmental characteristics | Climatic

Operating temperature min. -20 °C
Operating temperature max. 60 °C

Important installation notes

Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
