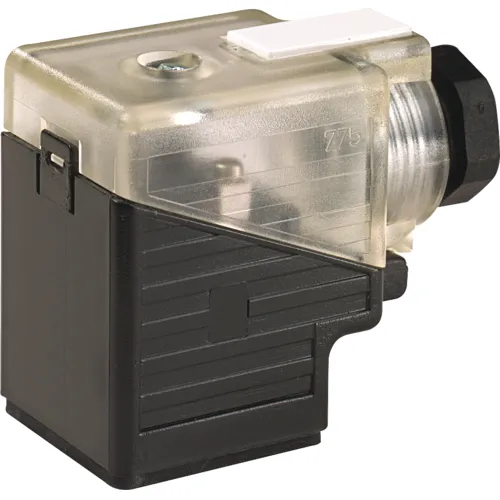

Đầu nối van điện từ form A 24...230V - header

Đầu nối van điện từ form A 24…230V có 2 LED SVS

SVS VALVE PLUG 7000-29281-0000000
– Form A 18mm
– 24-230V AC/DC
– Có LED (đỏ, xanh)

Đầu nối van điện từ form A 24…230V có 2 LED SVS 7000-29281-0000000 của Murrelektronik: thuộc series SVS, dùng cho van điện từ, công tắc áp lực…

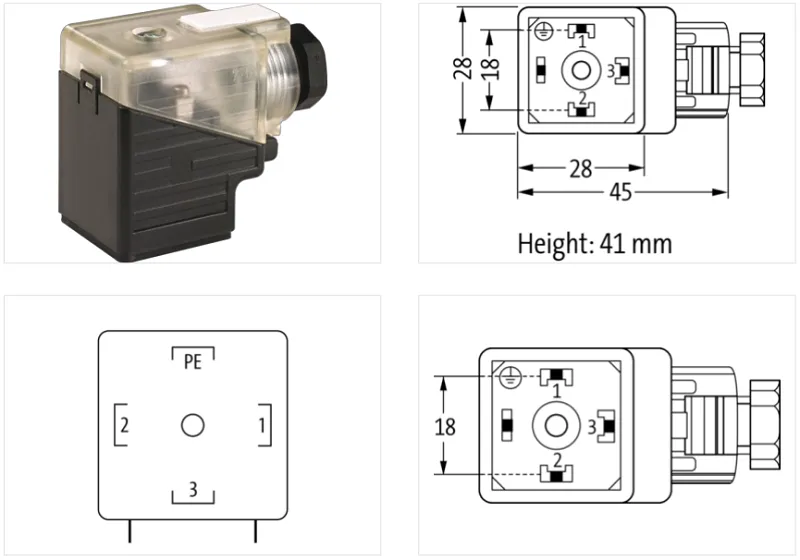

Đầu nối van điện từ form A 24...230V - detail1

  • Form A 18mm
  • 24-230V AC/DC

Đầu nối van điện từ form A 24...230V - detail2

  • Có LED trạng thái (red, green)

Đầu nối van khác

Side 1

Family construction form Valve connector form A
Mounting method pluggable, screwed
Degree of protection (EN IEC 60529) IP65

Electrical data | Supply

Operating voltage AC min. 24 V
Operating voltage AC max. 230 V
Operating voltage DC min. 24 V
Operating voltage DC max. 230 V
Current operating per contact max. 4 A

Diagnostics

Status indication LED green, red

Installation

Connection cross section max. 1,5 mm²

Installation | Connection

Tightening torque 0,4 Nm
Mounting set M16 x 1.5

Installation | Pin assignment

No. of poles 3 + PE

Device protection | Electrical

Additional condition protection degree inserted, screwed
Pollution Degree 2
Rated surge voltage 4 kV
Material group (IEC 60664-1) III

Mechanical data | Mounting data

Fastening screw M3x31
Clamping range min. 5 mm
Clamping range max. 10 mm

Environmental characteristics | Climatic

Operating temperature min. -20 °C
Operating temperature max. 60 °C

Important installation notes

Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties



Datasheet
