Đầu nối van điện từ form A-18mm có 5m cáp 7000-18061-2260500

Đầu nối van điện từ 7000-18061-2260500:

– Là đầu nối van form A-18mm
– Cáp dài 5m, vỏ bọc PUR

Đầu nối van điện từ form A-18mm có 5m cáp 7000-18061-2260500 của Murrelektronik: có cáp bọc PUR 3×0.75, màu xám

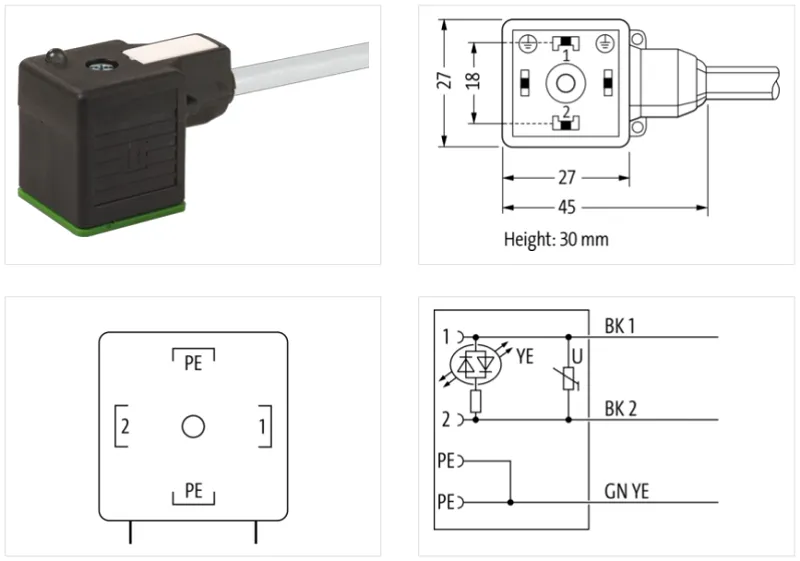

Đầu nối van điện từ form A-18mm có 5m cáp - detail1

  • Đầu nối van điện từ form A 18mm
  • Cáp bọc PUR 3×0.75 mm², màu xám, dài 5m

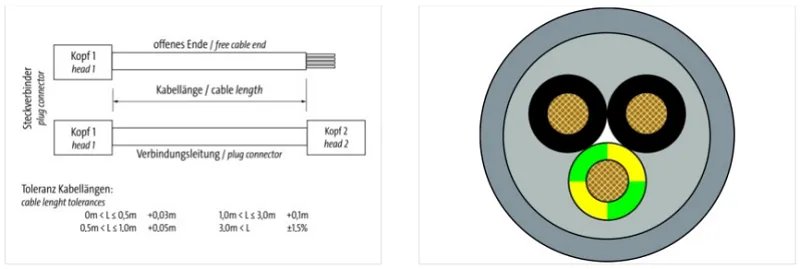

Đầu nối van điện từ form A-18mm có 5m cáp - detail2

  • Đạt chuẩn UL/CSA

Sản phẩm tương tự

Cable length 5,00 m

Side 1

Family construction form Valve connector form A
No. of poles 4
Gender female
Mounting method inserted, screwed
Threaded hole M3x31
Tightening torque 0,4 Nm
Material PBT
Degree of protection (EN IEC 60529) IP67

Electrical data

Drop-out delay time max. 20 ms

Electrical data | Supply

Operating voltage AC 230 V
Operating voltage AC min. 207 V
Operating voltage AC max. 253 V
Operating voltage DC 230 V
Operating voltage DC min. 207 V
Operating voltage DC max. 253 V
Current operating per contact max. 4 A
Cut-off peak voltage max. 560 V

Installation | Connection

Mounting set M3x31

Device protection | Electrical

Additional condition protection degree inserted, screwed
Pollution Degree 3

Mechanical data | Material data

housing Plastic
Color housing black
Screw connection Steel
Coating of fitting galvanized

Mechanical data | Mounting data

Mounting method inserted, screwed

Environmental characteristics | Climatic

Operating temperature min. -25 °C
Operating temperature max. 85 °C
Additional condition temperature range depending on cable quality

Important installation notes

Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
