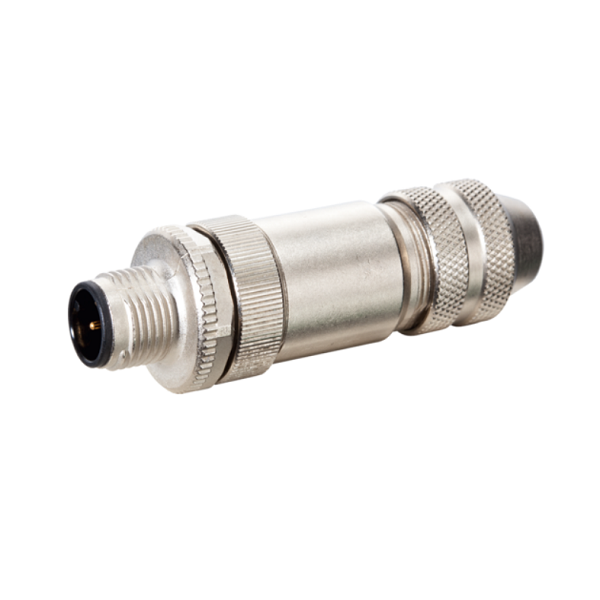

Đầu nối shield 5 cực M12 male 0° A-code 7000-13301-0000000
– 5-pol., max. 0,75mm², 6 – 8mm, shielded
– M12 male (đầu nối đực) 0°, A-cod, 5 chân
– Điện áp: 60 V AC/DC
– IP67
Đầu nối shield 5 cực M12 male 0° A-code 7000-13301-0000000: là đầu nối thẳng không có cáp, M12 male (đầu nối đực) 0° A-cod. screw terminal, shielded, 5 chân
(5-pol., max. 0,75mm², 6 – 8mm, shielded)
Vỏ kim loại, chống nhiễu điện từ

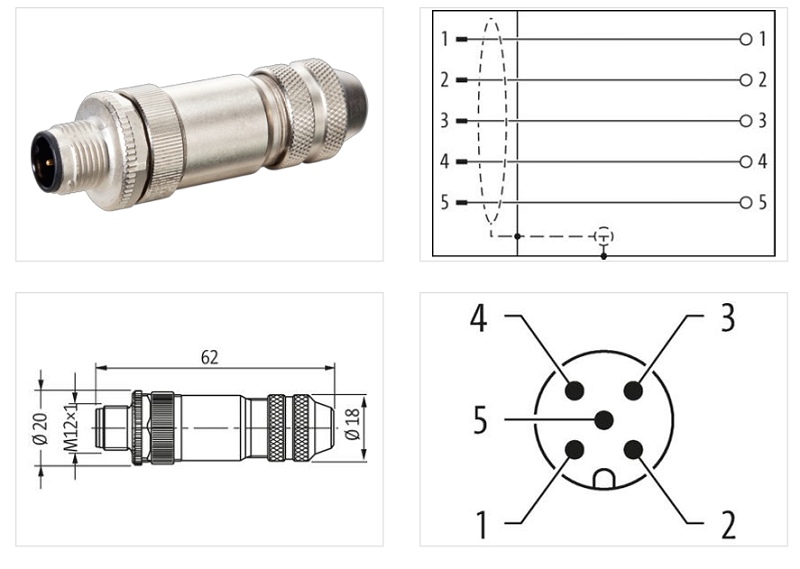

Thông số kỹ thuật – Đầu nối shield 5 cực M12 male 0° A-code 7000-13301-0000000
| Family construction form | M12 |
|---|---|
| Degree of protection (EN IEC 60529) | IP67 |
| Operating voltage AC max. | 60 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
| Connection cross section max. | 0,75 mm² |
|---|
| Additional condition protection degree | inserted, screwed |
|---|
| Material housing | Brass |
|---|---|
| Coating housing | nickel plated |
| Clamping range min. | 4 mm |
|---|---|
| Clamping range max. | 6 mm |
| Operating temperature min. | -40 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
