– Đầu nối đực 7/8″ 0°
– 5 cực, đấu dây kiểu vít
– Tiết diện dây đến 1,5 mm²
– Phù hợp cấp nguồn

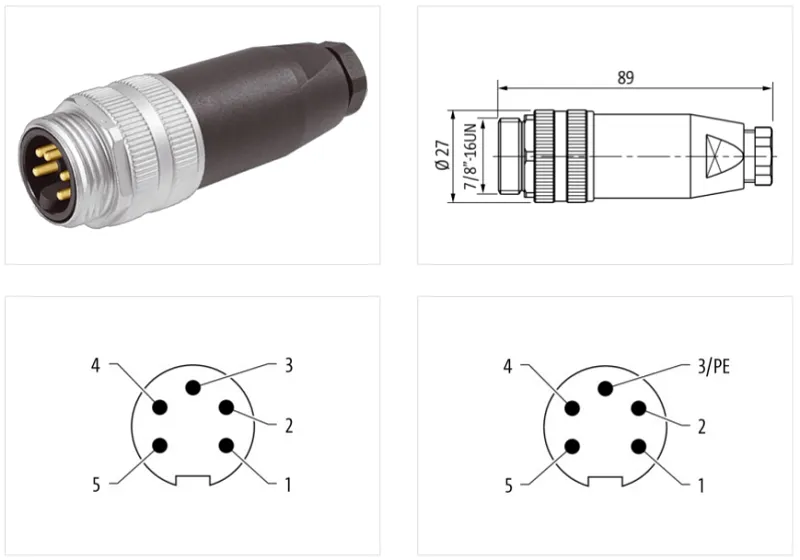

Đầu nối nguồn 7/8” male 0° 5 cực 7000-78081-0000000 của Murrelektronik là đầu nối đực thẳng 7/8″, 5 cực, đấu dây kiểu vặn vít, phù hợp cấp nguồn và tín hiệu trong công nghiệp
Side 1
| Family construction form | 7/8″ |
| No. of poles | 5 |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | 7/8″ |
| Tightening torque | 1,5 Nm |
| Cable outlet | straight |
Side 2
| Mounting method | Field-wireable |
| Cable outlet | straight |
Electrical data
| Contact resistance max. | 5 mΩ |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 9 A |
| Operating voltage AC (UL-listed) | 600 V |
Installation
| Connection cross section max. | 1,5 mm² |
| Cross section connection without wire end ferrule AWG max. | 16 AWG |
Installation | Connection
| Connection | Screw terminals SK |
| Mating cycles min. | 100 |
Device protection
| Shielded | No |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Overvoltage category (EN 60664-1) | III |
| Overvoltage category (EN 60950-1) | III |
| Rated surge voltage | 4 kV |
| Insulation resistance min. | 10.000 mΩ |
| Material group (IEC 60664-1) | III |
Mechanical data | Material data
| housing | PBT |
| Coating contact | gold plated |
| Locking material | Zinc die-casting |
Mechanical data | Mounting data
| Clamping range min. | 6 mm |
| Clamping range max. | 8 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
