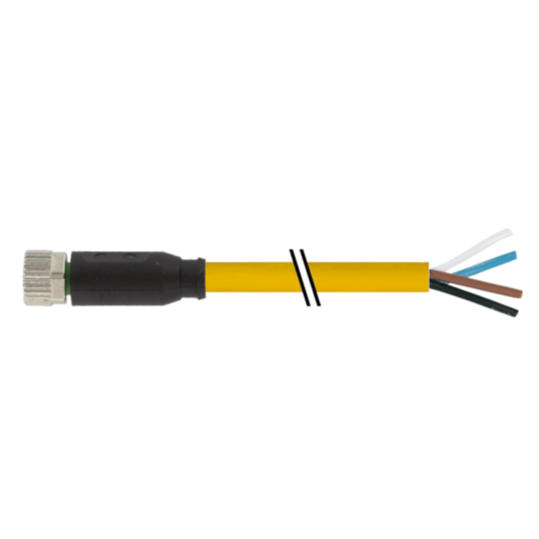

Đầu nối Murrelektronik M8 female 0° A-cod 7000-08061-0110500 là đầu nối 0°, có sẵn cáp dài 5m, M8, 4 chân, female, A-cod.
(PVC 4×0.25 ye UL/CSA 5m )
Đầu nối Murrelektronik M8 female 0° A-cod 7000-08061-0110500
– Là đầu nối 0°, có sẵn cáp dài 5m, M8
– Female, 4 chân, A-cod.
– Inserted, screwed terminal
– IP65, IP66K, IP67
Đầu nối Murrelektronik M8 female 0° A-cod 7000-08061-0110500 là đầu nối 0°, có sẵn cáp dài 5m, M8, 4 chân, female, A-cod.
(PVC 4×0.25 ye UL/CSA 5m )
Thông số kỹ thuật – Đầu nối Murrelektronik M8 female 0° A-cod 7000-08061-0110500
Cable length | 5 m |
---|
Tightening torque | 0,4 Nm |
---|---|
Mounting method | inserted, screwed |
Coating contact | gold plated |
Family construction form | M8 |
Thread | M8 x 1 |
suitable for corrugated tube (internal Ø) | 6,5 mm |
Cable outlet | straight |
Coding | A |
Material contact | Copper alloy |
Material | PUR |
No. of poles | 4 |
Width across flats | SW9 |
Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Stripping length (jacket) | 20 mm |
---|---|
Family construction form | free cable end |
Operating voltage AC max. | 50 V |
---|---|
Operating voltage DC max. | 60 V |
Operating voltage AC (UL-listed) | 30 V |
Operating voltage DC (UL-listed) | 30 V |
Current operating per contact max. | 4 A |
Status indication LED | no |
---|
Stripping length (jacket) | 20 mm |
---|---|
Mounting set | M8 x 1 |
Degree of protection (EN IEC 60529) | IP65, IP67, IP66K |
---|---|
Additional condition protection degree | inserted, screwed |
Pollution Degree | 3 |
Rated surge voltage | 1,5 kV |
Material group (IEC 60664-1) | I |
Coating locking | Nickeled |
---|---|
Coating of fitting | nickel plated |
Material gasket | FKM |
Locking material | Zinc die-casting |
Material screw connection | Zinc die-casting |
Mounting method | inserted, screwed, Shaking protection |
---|
Operating temperature min. | -25 °C |
---|---|
Operating temperature max. | 85 °C |
Additional condition temperature range | depending on cable quality |
Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
---|---|
Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Product standard | DIN EN 61076-2-104 (M8) |
---|
