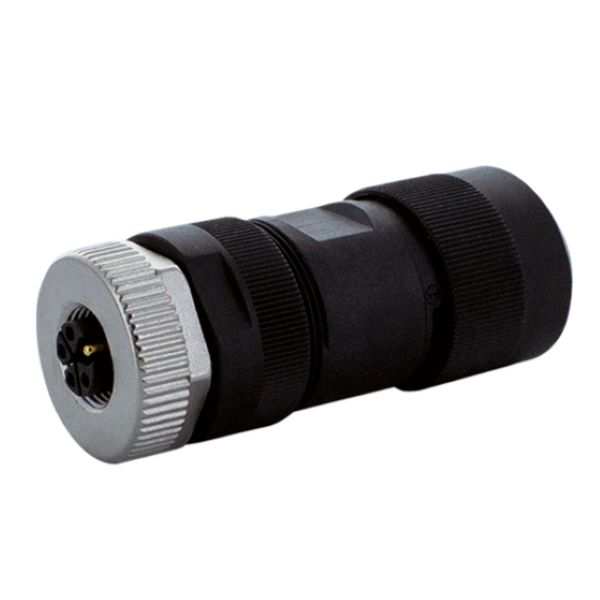

Đầu nối Murrelektronik M12 Power female 0° L-cod 7000-P4611-0000000 là đầu nối thẳng, M12 female (đầu nối cái) 0° L-Cod, screw terminal, 5 chân
Sealing range (cable Ø)
(5-pol., max. 2,5mm², 8 – 13mm)
Đầu nối Murrelektronik M12 Power female 0° L-cod 7000-P4611-0000000
Đầu nối Murrelektronik M12 Power female 0° L-cod 7000-P4611-0000000
– Là đầu nối thẳng, female (đầu nối cái), L-cod, 5 chân
– IP67
Thông số kỹ thuật – Đầu nối Murrelektronik M12 Power female 0° L-cod 7000-P4611-0000000
Side 1
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Family construction form | M12P |
| Thread | M12 x 1 |
| Gender | female |
| Cable outlet | straight |
| Coding | L |
| Material contact | Copper alloy |
| No. of poles | 5 |
Side 2
| Mounting method | field-wireable |
Electrical data | Supply
| Operating voltage AC max. | 63 V |
| Operating voltage DC max. | 63 V |
| Current operating per contact max. | 16 A |
Diagnostics
| Status indication LED | no |
Installation
| Cross section connection with wire end ferrule max. | 1,5 mm² |
| Cross section connection without wire end ferrule max. | 2,5 mm² |
| AWG number max. | 14 |
| Cross section connection with wire end ferrule AWG max. | 16 AWG |
| Cross section connection without wire end ferrule AWG max. | 14 AWG |
Installation | Connection
| Connection | Screw terminals SK |
| Mounting set | M12 x 1 |
| Mating cycles min. | 100 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | II |
| Overvoltage category (EN 60950-1) | III |
Mechanical data | Material data
| Coating contact | gold plated |
| Material housing | PA |
| Material contact carrier | PA |
Mechanical data | Mounting data
| Mounting method | Schraubgewinde |
| Clamping range min. | 8 mm |
| Clamping range max. | 13 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
