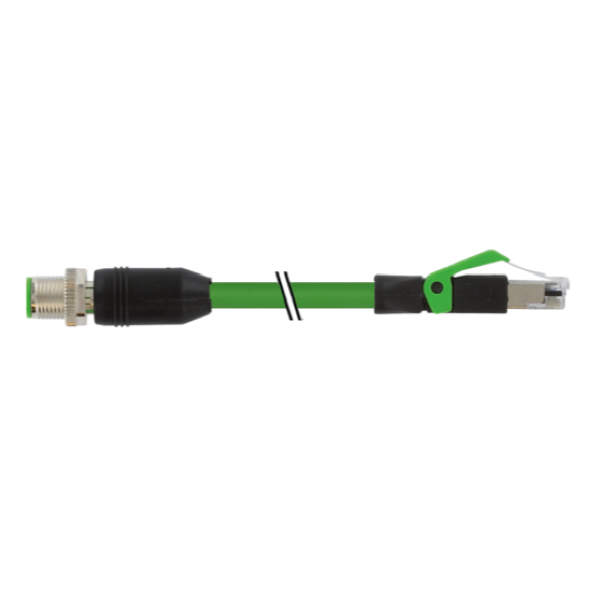

Đầu nối Murrelektronik M12 male 0° D-cod 7000-44711-6590500
– M12 male 0° D-cod,4 chân / RJ45 male 0°, Ethernet CAT5
– Có bọc chống nhiễu
– IP67
Đầu nối Murrelektronik M12 male 0° D-cod 7000-44711-6590500 là đầu nối thẳng, chuyển đổi gữa M12, D-cod và RJ45, Ethernet CAT5, được bọc chống nhiễu, có cáp dài 5m
(PUR 1x4xAWG22 shielded gn UL/CSA+drag ch. 5m)
Vỏ nhựa có khả năng chống dầu và hóa chất tốt, phù hợp trong môi trường công nghiệp
Thông số Kỹ thuật – Đầu nối Murrelektronik M12 male 0° D-cod 7000-44711-6590500
| Cable length | 5 m |
Side 1
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Gender | male |
| Cable outlet | straight |
| Coding | D |
| Material | PUR |
| No. of poles | 4 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2
| Mounting method | pluggable |
| Family construction form | RJ45 |
| Gender | male |
| Cable outlet | straight |
| Material | PUR |
| No. of poles | 4 |
| Degree of protection (EN IEC 60529) | IP20 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 1,5 A |
Industrial communication
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Data transmission rate max. | 100 MBit/s |
Industrial communication | Ethernet functionality
| duplex | Full duplex |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
Mechanical data | Material data
| Coating locking | Nickeled |
| Locking material | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Conformity
| Product standard | DIN EN 61076-2-101 (M12) |
