– Đầu nối M8 female thẳng, A-code
– IDC
– Field-wireable
– IP67

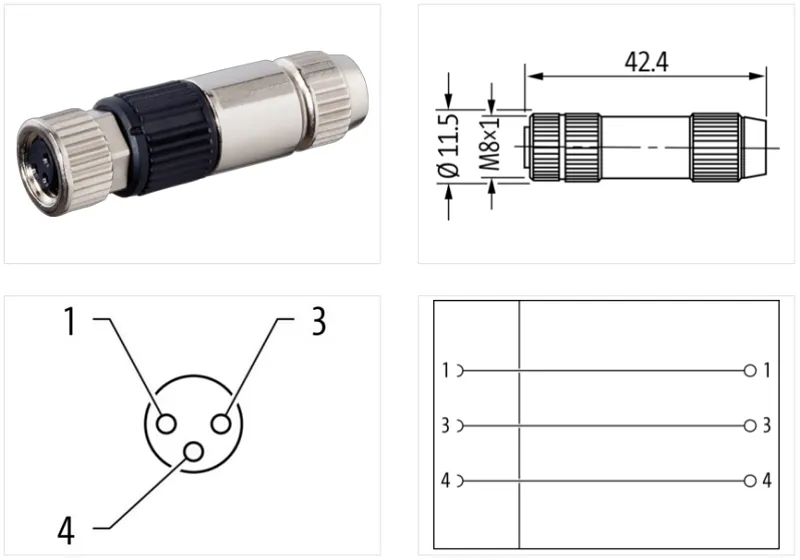

Đầu nối M8 female 0° A-code 7000-08371-0000000 của Murrelektronik là đầu nối field-wireable M8 female thẳng (0°), A-code, kiểu đấu dây IDC – đấu dây nhanh mà không cần hàn chì
Side 1
| Family construction form | M8 |
| No. of poles | 3 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M8 x 1 |
| Tightening torque | 0,4 Nm |
| Width across flats | SW9 |
| Cable outlet | straight |
| Material | PA |
| Material contact | Copper alloy |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2
| Mounting method | Field-wireable |
Electrical data | Supply
| Operating voltage AC max. | 32 V |
| Operating voltage DC max. | 32 V |
| Current operating per contact max. | 4 A |
Installation
| Single wire diameter min. | 0,1 mm |
| Connection cross section min. | 0,14 mm² |
| Connection cross section max. | 0,34 mm² |
Installation | Connection
| Connection | Cut clamps IDC |
| Tightening torque | 0,4 Nm |
| Mounting set | M8 x 1 |
| Mating cycles min. | 100 |
| Wire insulation diameter min. | 1 mm |
| Wire insulation diameter max. | 1,6 mm |
Installation | Pin assignment
| Configuration | fully used |
Device protection
| Shielded | No |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Overvoltage category (EN 60950-1) | III |
| Rated surge voltage | 0,8 kV |
| Insulation resistance min. | 100 mΩ |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
Mechanical data | Mounting data
| Height | 42,5 mm |
| Width | 1,8 mm |
| Depth | 11,8 mm |
| Mounting method | inserted, screwed, Shaking protection |
| Clamping range min. | 2,5 mm |
| Clamping range max. | 5,1 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN/IEC 61076-2-104 (M8) |
