– M12 Power female 0° L-coded, 5 cực (5-pol.)
– Kết nối IDC (Insulation Displacement Connector) cho dây 0,75 – 1,5 mm²
– Đường kính cáp 5,8 – 13,5 mm
– Có shield (chống nhiễu)
– Field-wireable

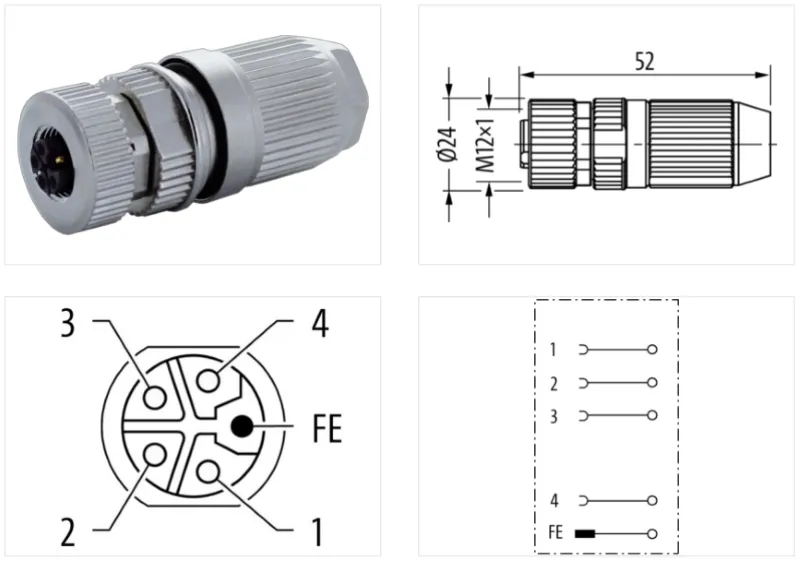

Đầu nối M12 Power female 0° L-code IDC 5 cực có shield 7000-P4421-0000000 là chuyên dùng cho kết nối nguồn công nghiệp. Phù hợp lắp đặt nhanh với công nghệ IDC.
Side 1
| Family construction form | M12P |
| No. of poles | 5 |
| Coding | L |
| Gender | female |
| Mounting method | inserted, screwed |
| Cable outlet | straight |
| Material contact | Copper |
Side 2
| Mounting method | Field-wireable |
Electrical data | Supply
| Operating voltage DC max. | 63 V |
| Current operating per contact max. | 12 A |
Diagnostics
| Status indication LED | No |
Installation
| Connection cross section max. | 1,5 mm² |
Installation | Connection
| Tightening torque | 0,6 Nm |
| Mounting set | M12 x 1 |
| Width across flats | SW17 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67, IP65 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
Mechanical data | Material data
| housing | Zinc die-casting |
| Coating housing | Nickeled |
| Material contact carrier | PA |
| Coating contact | gold plated |
Mechanical data | Mounting data
| Height | 53 mm |
| Width | 25 mm |
| Depth | 25 mm |
| Mounting method | inserted, screwed, Shaking protection |
| Clamping range min. | 5,8 mm |
| Clamping range max. | 13,5 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN IEC 61076-2-111, EN 45545-2, EN 50155 |
| Shock and vibration resistance | EN/IEC 61373 |
| Fire protection | EN 45545-2, HL1-HL3, requirement sets R22, R23, R24 |
