– Đầu nối M12 male 90°, A-code, 4 chân
– Kiểu đấu dây: screw terminal
– Field-wireable
– IP67

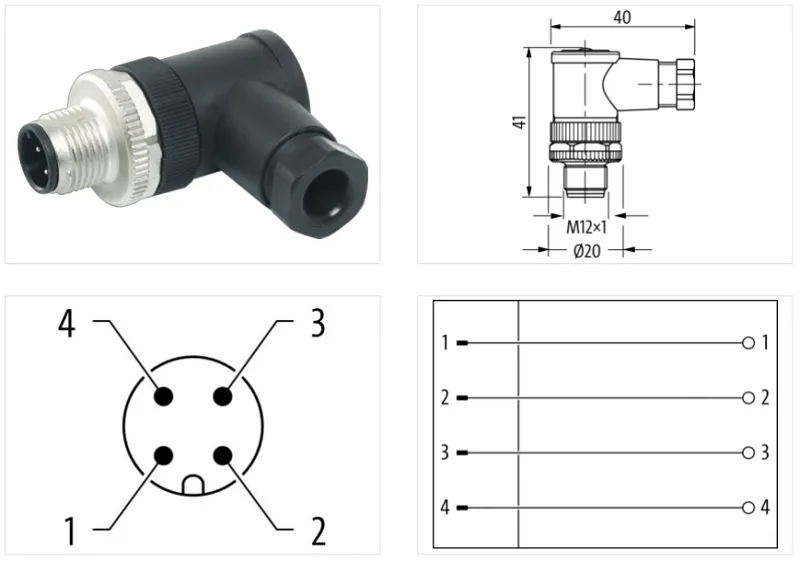

Đầu nối M12 male 90° A-code 4 chân 7000-12861-0000000 của Murrelektronik là đầu nối field-wireable M12 male 90°, A-code 4 chân. Đấu dây kiểu screw terminal
Đặc điểm:
Side 1-1
| Family construction form | M12 |
| No. of poles | 4 |
| Coding | A |
| Gender | male |
| Mounting method | pluggable, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW18 |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2-2
| Mounting method | Field-wireable |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | No |
Installation
| Rotation option | 90° (4 outlet directions) |
| Connection cross section max. | 0,75 mm² |
Installation | Connection
| Tightening torque | 0,6 Nm |
Installation | Pin assignment
| Configuration | partly used |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
Mechanical data | Mounting data
| Height | 41 mm |
| Width | 35 mm |
| Depth | 20 mm |
| Mounting method | inserted, screwed, Shaking protection |
| Clamping range min. | 6 mm |
| Clamping range max. | 8 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
