– M12 male, thẳng, X-code, 8 chân
– CAT6A
– Kiểu IDC (không cần tuốt dây)
– Field-wireable
– Shielded

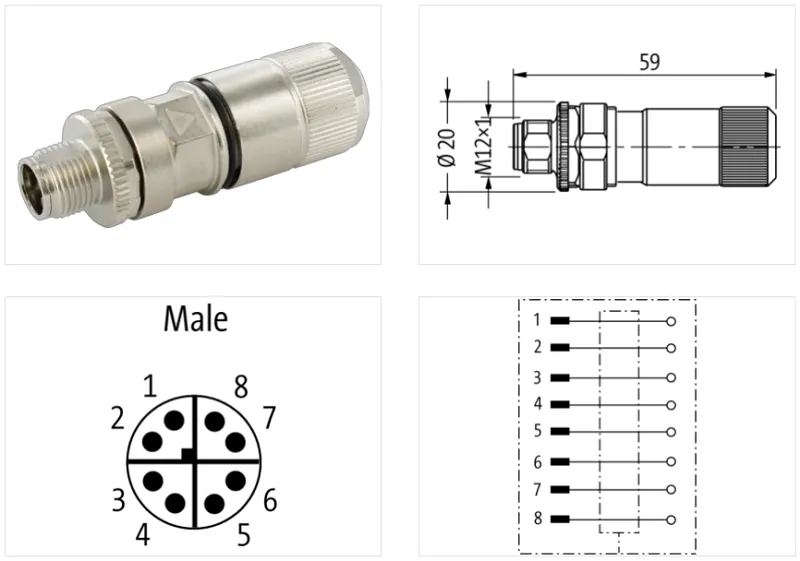

Đầu nối M12 male 0° X-code IDC 7000-21101-0000000 của Murrelektronik là đầu nối field-wireable M12 male, thẳng (0°), X-code, kiểu IDC. Dùng cho truyền data tốc độ cao (đến 10 Gbit/s)
Đặc điểm:
Side 1
| Family construction form | M12 |
| Coding | X |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage AC max. | 50 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 0,5 A |
Industrial Communication
| Data transmission rate max. | 10 Gbit/s |
| Transfer parameters | CAT6, Class EA (ISO/IEC 11801:2002), (EN 50173-1) |
Installation
| Connection cross section min. | 0,14 mm² |
| Connection cross section max. | 0,34 mm² |
Installation | Connection
| Tightening torque | 0,6 Nm |
| Width across flats | SW 18 |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
Mechanical data | Material data
| housing | Brass |
| Coating housing | nickel plated |
Mechanical data | Mounting data
| Clamping range min. | 5,5 mm |
| Clamping range max. | 9 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN/IEC 61076-2-109 (M12), EN 50121-3-2, EN 50121-4 |
| Shock and vibration resistance | EN 50155 |
| Fire protection | EN 45545-2, requirement set R26 |
