Đầu nối M12 male 0° D-code IDC 4 cực chống nhiễu

– Đầu nối đực M12 0°, D-code 4 cực
– Đấu dây kiểu IDC (Insulation Displacement Contact)
– Có shield
– Phù hợp Ethernet CAT5

Đầu nối M12 male 0° D-code IDC 4 cực chống nhiễu 7000-14521-0000000 của Murrelektronik: đầu nối đực M12 D-code 4 cực, đấu dây kiểu IDC, có shield, phù hợp Ethernet CAT5, phạm vi kẹp cáp 4,5–8,8 mm

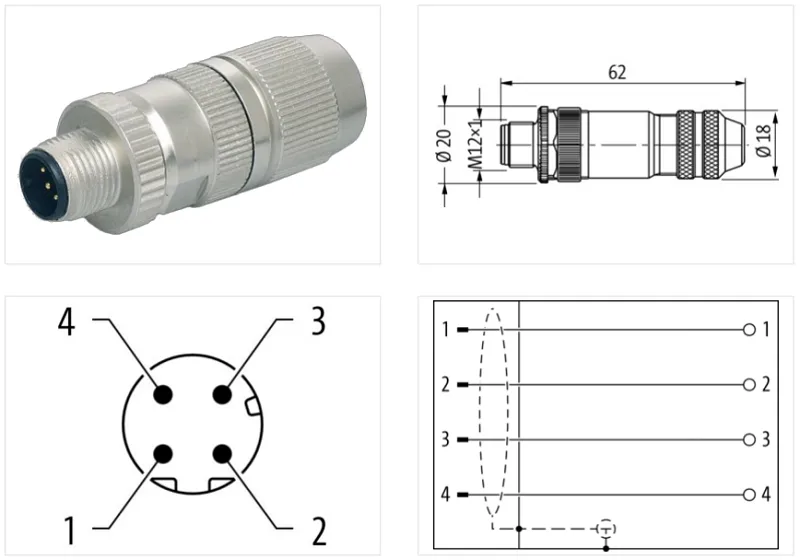

Đầu nối M12 male 0° D-code IDC 7000-14521-0000000 - detail

  • Đầu đực M12 0°, D-code 4 cực
  • Kiểu đấu dây IDC (lưỡi cắt)
  • Có shield
  • Phạm vi kẹp cáp 4,5–8,8 mm
  • Tiết diện dây 0,14–0,34 mm²
  • Cấp bảo vệ IP65 / IP67
  • Tốc độ truyền dữ liệu đến 100 Mbit/s

Đầu nối khác

Side 1

Family construction form M12
No. of poles 4
Coding D
Gender male
Mounting method inserted, screwed
Threaded hole M12 x 1
Tightening torque 0,6 Nm
Cable outlet straight
Degree of protection (EN IEC 60529) IP67, IP65

Side 2

Mounting method Field-wireable

Electrical data | Supply

Operating voltage AC max. 50 V
Operating voltage DC max. 50 V
Current operating per contact max. 4 A

Industrial Communication

Data transmission rate max. 100 Mbit/s
Transfer parameters CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)

Industrial communication | Ethernet functionality

duplex Full duplex

Installation

Connection cross section min. 0,14 mm²
Connection cross section max. 0,34 mm²

Installation | Connection

Connection Cut clamps IDC
Tightening torque 0,6 Nm
Mating cycles min. 100

Device protection

Shielded Yes

Device protection | Electrical

Additional condition protection degree inserted, screwed
Pollution Degree 3
Rated surge voltage 1,5 kV
Material group (IEC 60664-1) I

Mechanical data | Material data

housing Zinc die-casting
Material contact carrier PA
Material contact Brass
Coating contact gold plated
Locking material Zinc die-casting
Coating locking Nickeled

Mechanical data | Mounting data

Mounting method inserted, screwed, Shaking protection
Clamping range min. 4,5 mm
Clamping range max. 8,8 mm

Environmental characteristics | Climatic

Operating temperature min. -40 °C
Operating temperature max. 85 °C

Important installation notes

Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity

Product standard EN 45545-2, EN 50155, EN IEC 61076-2-101 (M12)
Shock and vibration resistance EN/IEC 61373
Fire protection EN 45545-2, HL1-HL3, requirement sets R22, R23, R24



Datasheet
