– Cáp Ethernet CAT5
– Đầu cắm thẳng đực
– M12, 4 cực
– Code D
– Có shield
– Phạm vi đường kính cáp: 6…8 mm

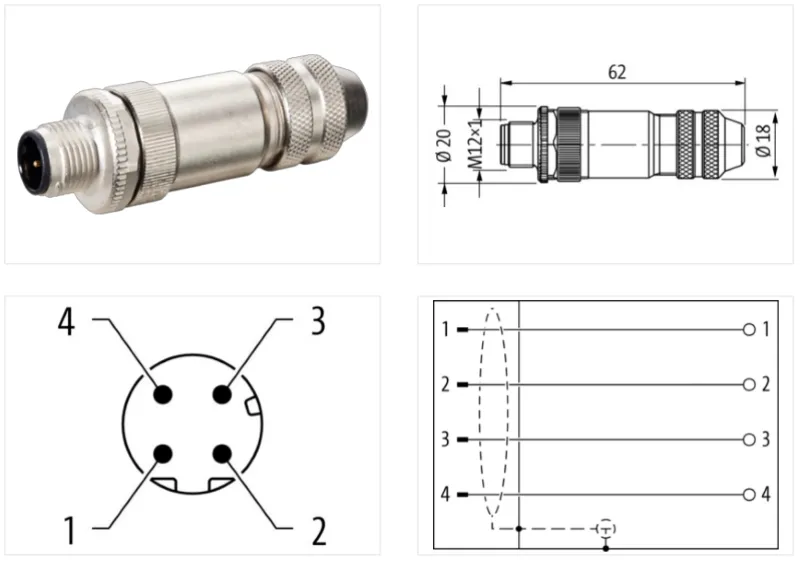

Đầu nối M12 male 0° D-code 4 cực 7000-14591-0000000 là đầu nối field-wireable, shielded cho Ethernet CAT5
Side 1
| Family construction form | M12 |
| Coding | D |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
Industrial Communication
| Data transmission rate max. | 100 Mbit/s |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
Industrial communication | Ethernet functionality
| duplex | Full duplex |
Installation
| Connection cross section max. | 0,75 mm² |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
Mechanical data | Material data
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
Mechanical data | Mounting data
| Clamping range min. | 6 mm |
| Clamping range max. | 8 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
