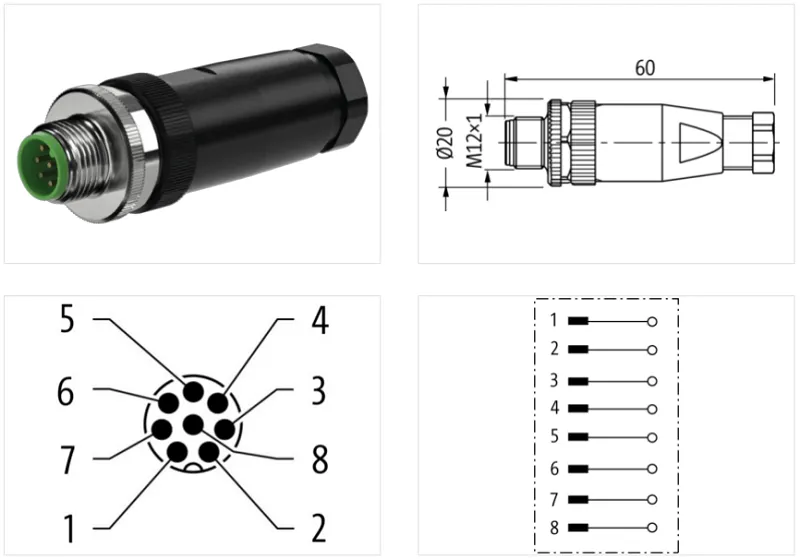

Đầu nối M12 male 0° A-code 8 cực 7000-17301-0000000 của Murrelektronik là đầu nối field-wireable M12 male 0°, A-code 8cực. Kiểu đấu dây screw terminal
Đặc điểm:
- Đầu nối M12 male 0°, A-code 8 chân
- Screw terminal
- Field-wireable
- IP67
Đầu nối M12 male 0° A-code 8 cực 7000-17301-0000000
– Đầu nối M12 male 0°, A-code
– Screw terminal
– Field-wireable
– 8 chân
Side 1-1
| Family construction form | M12 |
| No. of poles | 8 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,4 Nm |
| Width across flats | SW18 |
| Cable outlet | straight |
| Material contact | Bronze |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage AC max. | 30 V |
| Operating voltage DC max. | 30 V |
| Current operating per contact max. | 2 A |
Diagnostics
| Status indication LED | No |
Installation
| Connection cross section max. | 0,5 mm² |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Overvoltage category (EN 60664-1) | II |
| Material group (IEC 60664-1) | III |
Mechanical data | Material data
| housing | PBT |
| Material contact carrier | PA |
| Screw connection | Brass |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
| Clamping range min. | 6 mm |
| Clamping range max. | 8 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
