– M12 male 0°, 5 chân
– Screw terminal (đấu dây kiểu vặn vít)
– Field-wireable

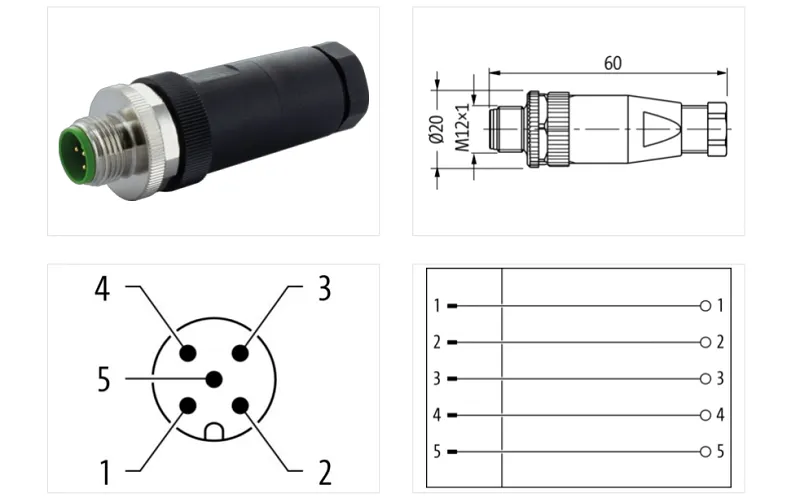

Đầu nối M12 male 0° A-code 5 chân 7000-12762-0000000 của Murrelektronik: screw terminal, field-wireable. Phù hợp với cáp có lõi max 0.75mm², đường kính cáp 6-8mm
Side 1
| Family construction form | M12 |
| No. of poles | 5 |
| Coding | A |
| Material contact | Copper alloy |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Installation
| Connection cross section max. | 0,75 mm² |
Installation | Connection
| Connection | Screw terminals SK |
| Tightening torque | 0,6 Nm |
| Width across flats | SW18 |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Overvoltage category (EN 60950-1) | II |
| Insulation resistance min. | 100 mΩ |
Mechanical data | Material data
| housing | PBT |
| Coating contact | gold plated |
| Locking material | Copper alloy |
Mechanical data | Mounting data
| Clamping range min. | 6 mm |
| Clamping range max. | 8 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties |
