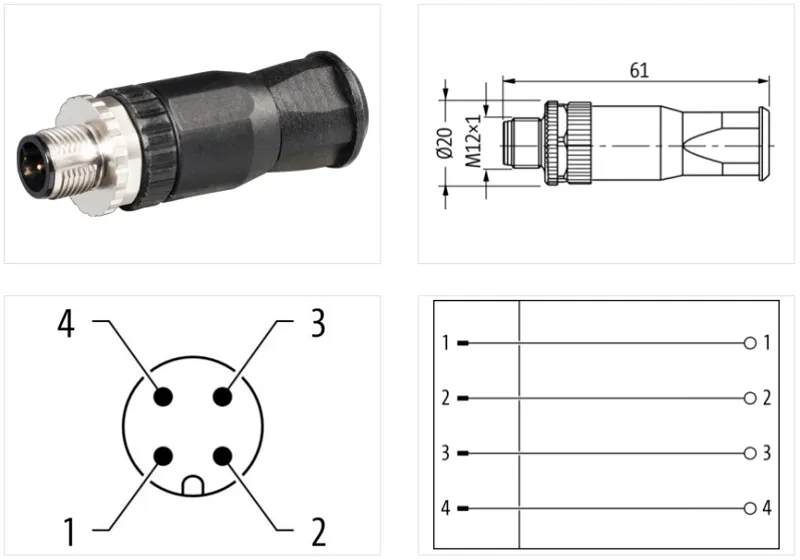

Đầu nối M12 male 0° A-code 4 cực 7000-12734-0000000 của Murrelektronik: field-wireable, screw terminal, dây 0.14–1.5 mm², vỏ 2.5–8 mm
- Coding: A-code
- Kiểu kết nối: screw terminal (vặn vít)
- 4 cực
Đầu nối M12 male 0° A-code 4 cực 7000-12734-0000000
– M12 male 0° A-code
– 4 cực
– Screw terminal
– Dây 0.14–1.5 mm²
– Cho cáp Φ2.5–8 mm
Side 1
| Family construction form | M12 |
| No. of poles | 4 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW18 |
| Material | PA6 |
| Material contact | CuZn |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2
| Mounting method | Field-wireable |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
| Operating voltage DC max. | 250 V |
Installation
| Connection cross section min. | 0,14 mm² |
| Connection cross section max. | 1,5 mm² |
| Cross section connection with wire end ferrule min. | 0,14 mm² |
| Cross section connection with wire end ferrule max. | 1,5 mm² |
| Cross section connection with wire end ferrule AWG min. | 26 AWG |
| Cross section connection with wire end ferrule AWG max. | 16 AWG |
Installation | Connection
| Tightening torque | 0,6 Nm |
| Width across flats | SW18 |
| Mating cycles min. | 100 |
Device protection | Electrical
| Additional condition protection degree | mounted, screwed |
| Pollution Degree | 3/2 |
| Insulation resistance min. | 100 mΩ |
Mechanical data | Material data
| Gasket | NBR |
Mechanical data | Mounting data
| Height | 61 mm |
| Width | 20 mm |
| Depth | 20 mm |
| Mounting method | Schraubgewinde |
| Clamping range min. | 2,5 mm |
| Clamping range max. | 8 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
