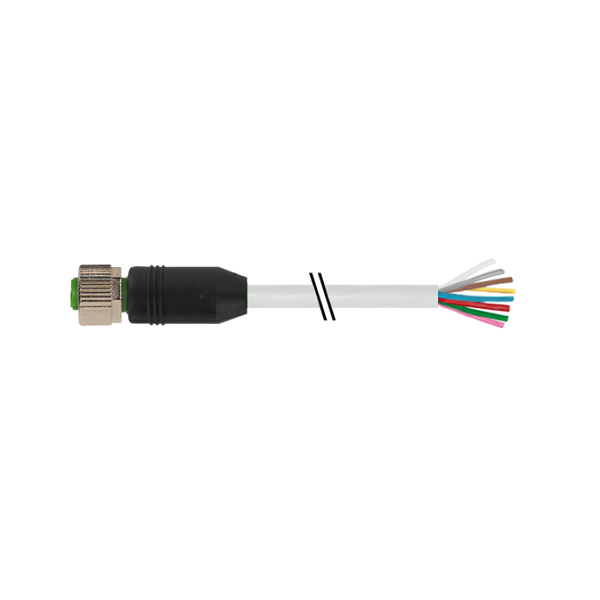

Đầu nối M12 female 0° A-code 8 cực có cáp dài 15m 7000-17041-2921500
– PUR 8×0.25 gy UL/CSA+drag ch. 15m
– M12, A-code, 8 chân, Female straight
– inserted, screwed
– IP65, IP66K, IP67
Đầu nối M12 female 0° A-code 8 cực có cáp dài 15m 7000-17041-2921500: là một dây cáp kết nối tín hiệu có sẵn đầu nối dùng trong công nghiệp
– PUR 8×0.25 gy UL/CSA+drag ch. 15m
– M12, A-code, 8 chân, Female straight (thẳng), có cáp dài 15m
– Vỏ nhựa có khả năng chống dầu và hóa chất tốt

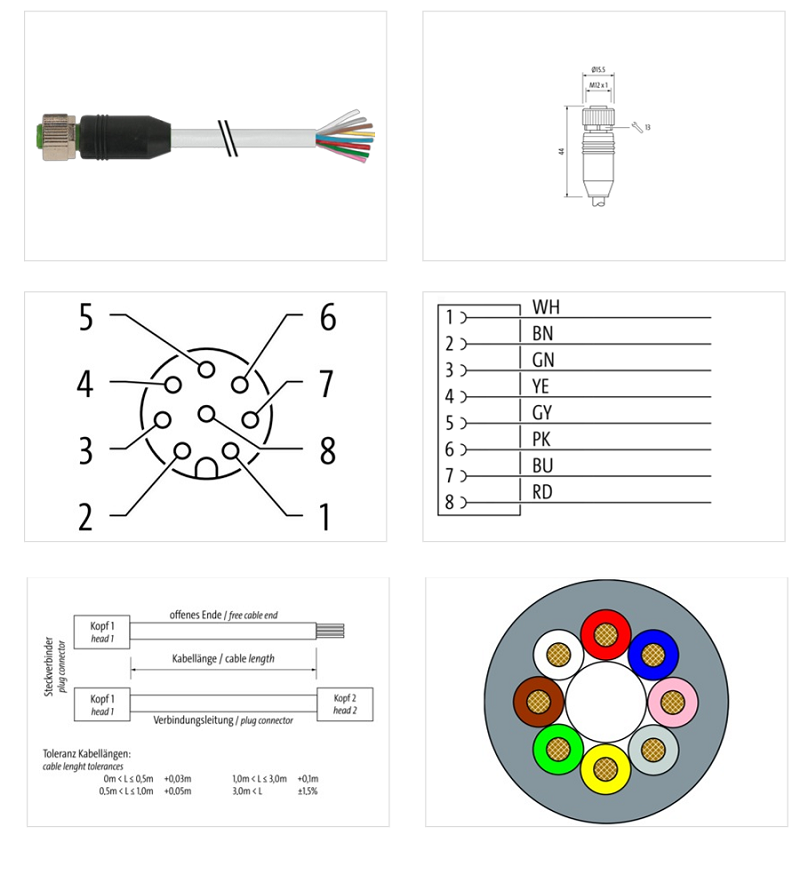

Thông số kỹ thuật – Đầu nối M12 female 0° A-code 8 cực có cáp dài 15m 7000-17041-2921500
| Cable length | 15,00 m |
|---|
| Family construction form | M12 |
|---|---|
| No. of poles | 8 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Family construction form | free cable end |
|---|---|
| Stripping length (jacket) | 60 mm |
| Operating voltage AC max. | 30 V |
|---|---|
| Operating voltage DC max. | 30 V |
| Current operating per contact max. | 2 A |
| Status indication LED | No |
|---|
| Mounting set | M12 x 1 |
|---|
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
| Contour for corrugated hose | without |
|---|
| Color contact carrier | green |
|---|---|
| Screw connection | Zinc die-casting |
| Coating of fitting | nickel plated |
| Mounting method | inserted, screwed |
|---|
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | EN IEC 61076-2-101 (M12) |
|---|
