– Đầu nối đực M12
– A-code 8 cực
– Dây PUR 8×0,25 mm² dài 0,2 m
– Phù hợp lắp vách tủ điện…

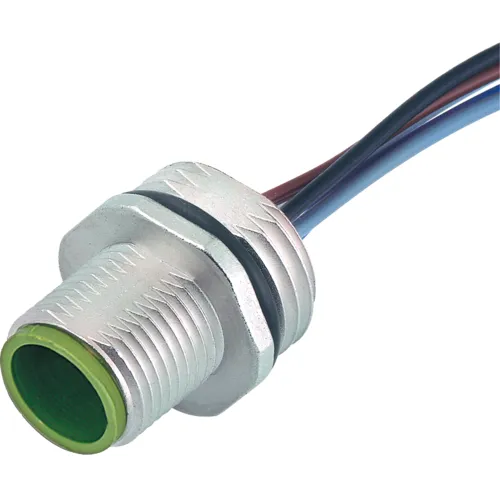

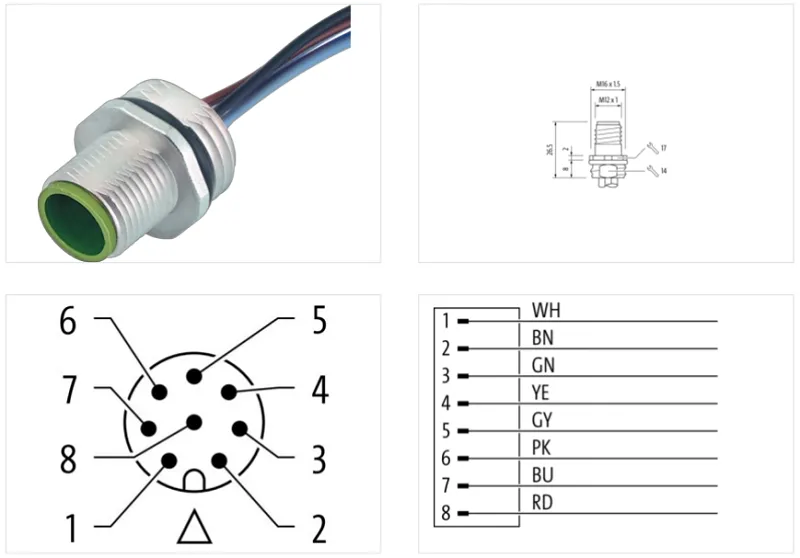

Đầu nối lắp vách M12 male A-code 8 chân có sẵn 0.2m dây 7000-17161-9730020 của Murrelektronik là đầu nối đực M12 gắn mặt trước tủ điện, A-code 8 cực, có dây bọc PUR với chiều dài dây 0,2 m, phù hợp lắp vào vách tủ điện…
| Cable length | 0,20 m |
Side 1
| Family construction form | M12 |
| No. of poles | 8 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW14 |
| Material | Zinc die-casting |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data
| Conductor resistance (wire) | 77.8 Ω/km @ 20 °C |
Electrical data | Supply
| Operating voltage AC max. | 30 V |
| Operating voltage DC max. | 30 V |
| Current operating per contact max. | 2 A |
| Nominal voltage AC max. | 300 V |
Diagnostics
| Status indication LED | No |
Installation | Connection
| Mounting set | M16 x 1.5 |
| Width across flats | SW19 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
| Protection NEMA | 6P, 4, 3 |
| Additional condition protection degree | mounted, screwed |
| Pollution Degree | 3 |
| Current load capacity (standard) | to DIN VDE 0298-4 |
| Current load capacity min. wire | 4,5 A |
| Rated surge voltage | 0,8 kV |
| Isolation resistance | 20 MΩ × km |
| Withstand voltage (wire – wire) | 1.5 kV @ 60 s |
| Material group (IEC 60664-1) | I |
Mechanical data
| Amount strands (wire) | 14 |
| Diameter of single wires | 0,15 mm |
| Contour for corrugated hose | without |
Mechanical data | Material data
| housing | Zinc die-casting |
| Coating housing | nickel plated |
| Screw connection | Zinc die-casting |
| Coating of fitting | nickel plated |
| Material wire insulation | PUR |
| Ingredient freeness wire insulation | lead-free, CFC-free, halogen-free |
| Material conductor wire | copper stranded wire, tinned |
Mechanical data | Mounting data
| Mounting method | Schraubgewinde |
| Looking techniques | Schraubgewinde |
| Cable weigth | 3,5 g/m |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Operating temperature min. (static) | -40 °C |
| Operating temperature max. (static) | -40 °C … 90 °C |
| Operating temperature min. (dynamic) | -25 °C |
| Operating temperature max. (dynamic) | -25 °C … 90 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN IEC 61076-2-101 (M12) |
Approvals
| UL 50E | Yes |
