Đầu nối lắp vách M12 male A-code 4 chân có sẵn 0.2m dây

– Đầu nối đực M12 gắn mặt trước, kèm đai ốc
– A-code 4 cực
– Dây PUR 4×0,34 mm² dài 0,2 m
– Bảo vệ IP67

Đầu nối lắp vách M12 male A-code 4 chân có sẵn 0.2m dây 7000-13502-9710020 của Murrelektronik là đầu nối đực (male) M12 gắn mặt trước tủ điện, A-code 4 cực, có dây bọc PUR 0,2 m sẵn, phù hợp lắp vào mặt thiết bị hoặc mặt tủ điện…

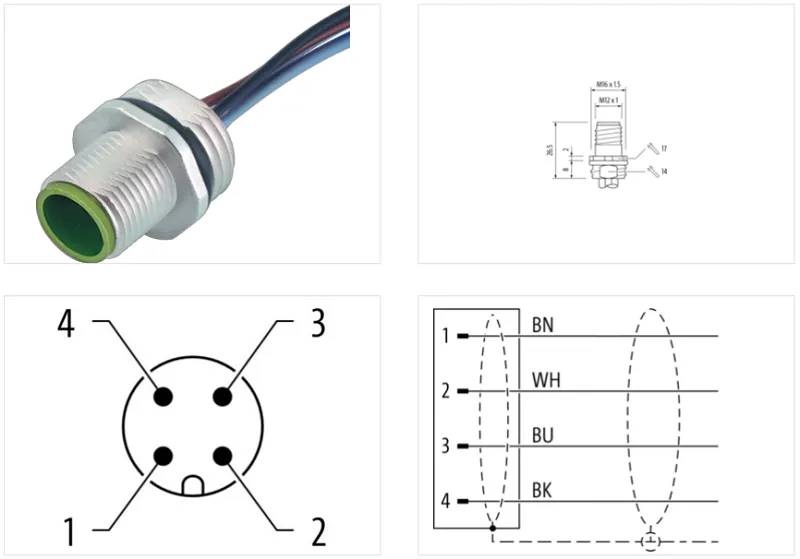

Đầu nối lắp vách M12 male A-code 4 chân có sẵn 0.2m dây - detail

  • Đầu nối đực M12 gắn mặt trước, A-code
  • Kèm đai ốc để lắp đặt
  • 4 cực
  • Dây PUR 4×0,34 mm² dài 0,2 mét
  • Cấp bảo vệ IP67
  • Phù hợp lắp panel, mặt tủ điện

Sản phẩm khác

Cable length 0,20 m

Side 1

Family construction form M12
No. of poles 4
Coding A
Gender male
Mounting method inserted, screwed
Threaded hole M12 x 1
Tightening torque 0,6 Nm
Material Zinc die-casting
Material contact Copper alloy
Coating contact gold plated
Degree of protection (EN IEC 60529) IP67

Electrical data

Conductor resistance (wire) 58 Ω/km @ 20 °C

Electrical data | Supply

Operating voltage AC max. 250 V
Operating voltage DC max. 250 V
Current operating per contact max. 4 A
Nominal voltage AC max. 300 V

Diagnostics

Status indication LED No

Installation | Connection

Mounting set M16 x 1.5
Width across flats SW19

Device protection | Electrical

Protection NEMA 6P, 4, 3
Additional condition protection degree inserted, screwed
Pollution Degree 3
Current load capacity (standard) to DIN VDE 0298-4
Current load capacity min. wire 6 A
Rated surge voltage 2,5 kV
Isolation resistance 20 MΩ × km
Withstand voltage (wire – wire) 1.5 kV @ 60 s
Material group (IEC 60664-1) I

Mechanical data

Amount strands (wire) 19
Diameter of single wires 0,15 mm
Contour for corrugated hose without

Mechanical data | Material data

Coating housing nickel plated
Screw connection Zinc die-casting
Coating of fitting nickel plated
Locking material Zinc die-casting
Coating locking Nickeled
Material wire insulation PUR
Ingredient freeness wire insulation lead-free, CFC-free, halogen-free
Material conductor wire copper stranded wire, tinned

Mechanical data | Mounting data

Mounting method Schraubgewinde
Looking techniques Schraubgewinde
Cable weigth 4,4 g/m

Environmental characteristics | Climatic

Operating temperature min. -30 °C
Operating temperature max. 85 °C
Operating temperature min. (static) -40 °C
Operating temperature max. (static) -40 °C … 90 °C
Operating temperature min. (dynamic) -25 °C
Operating temperature max. (dynamic) -25 °C … 90 °C
Additional condition temperature range depending on cable quality

Important installation notes

Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity

Product standard EN IEC 61076-2-101 (M12)

Approvals

UL 50E Yes
