– Field-wireable M8, male, 3cực, A-code
– Dành cho hàn dây 0.25mm².
– Đầu nối thẳng 0°

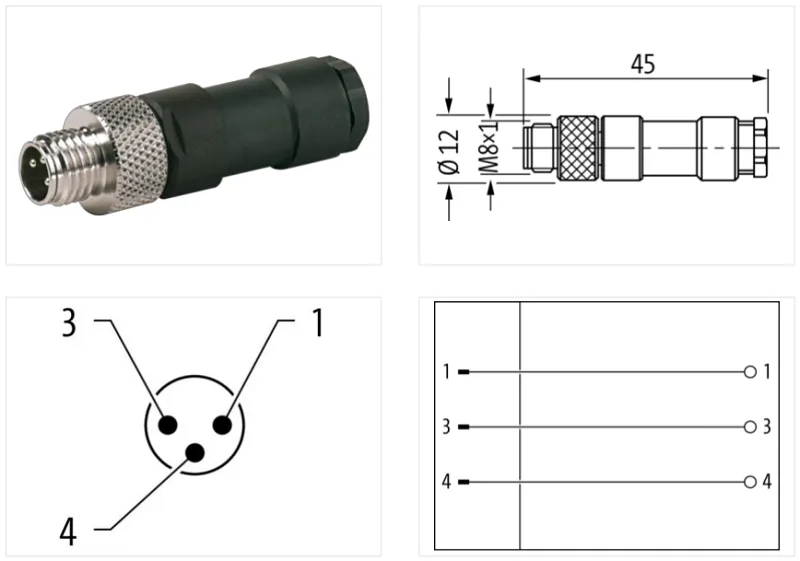

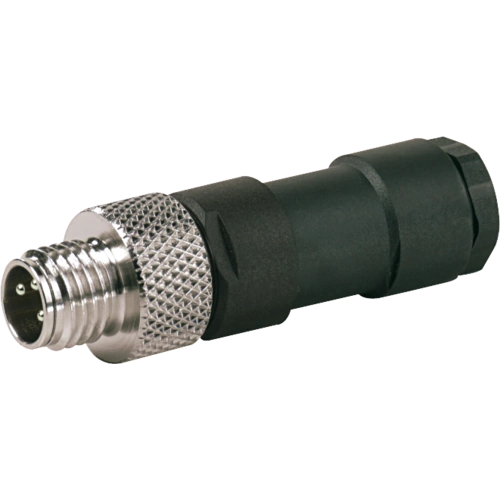

Đầu nối kiểu hàn chì M8 male 0° A-code 3 chân 7000-08401-0000000 của Murrelektronik dành cho dây 0.25mm², đường kính cáp 3.5-5mm. Dùng để kết nối cho sensor, actuator
Side 1
| Family construction form | M8 |
| No. of poles | 3 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M8 x 1 |
| Tightening torque | 0,4 Nm |
| Cable outlet | straight |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2
| Mounting method | Field-wireable |
Electrical data | Supply
| Operating voltage AC max. | 60 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Installation
| Connection cross section max. | 0,25 mm² |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
Mechanical data | Mounting data
| Height | 45 mm |
| Width | 12 mm |
| Depth | 12 mm |
| Clamping range min. | 3,5 mm |
| Clamping range max. | 5 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
