– Đầu nối M12 female 90°, A-code
– Screw terminal, 5 cực
– Shielded, cho cáp đường kính 4-6mm

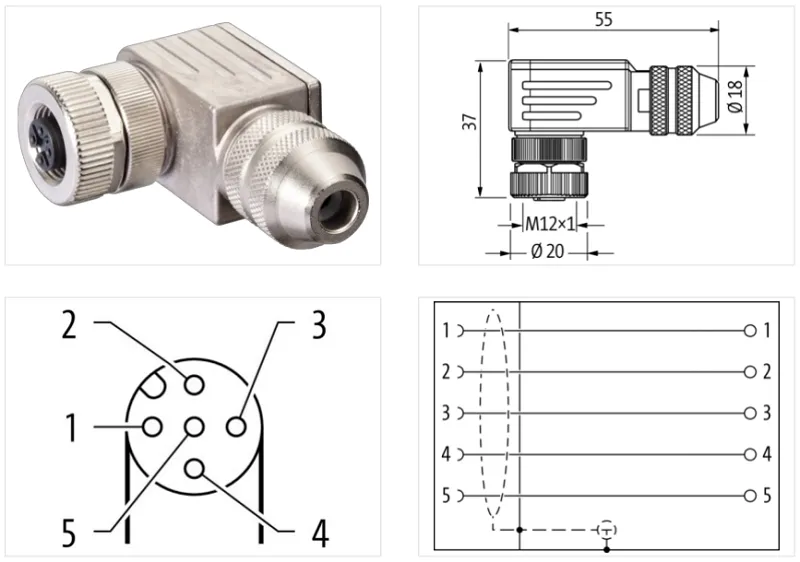

Đầu nối field-wireable M12 female 90° A-code 5 cực 7000-13421-0000000 của Murrelektronik là đầu nối cái (female), 90°, 5 cực, cho dây max 0.75mm², cáp Φ4-6mm, có shield
Đặc điểm:
Side 1-1
| Family construction form | M12 |
| No. of poles | 5 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Width across flats | SW18 |
| Cable outlet | angled |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2-2
| Mounting method | Field-wireable |
Electrical data | Supply
| Operating voltage AC max. | 60 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | No |
Installation
| Rotation option | 90° (4 outlet directions) |
| Connection cross section max. | 0,75 mm² |
Device protection
| Shielded | Yes |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | III |
Mechanical data | Material data
| housing | Brass |
| Coating housing | nickel plated |
Mechanical data | Mounting data
| Clamping range min. | 4 mm |
| Clamping range max. | 6 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
