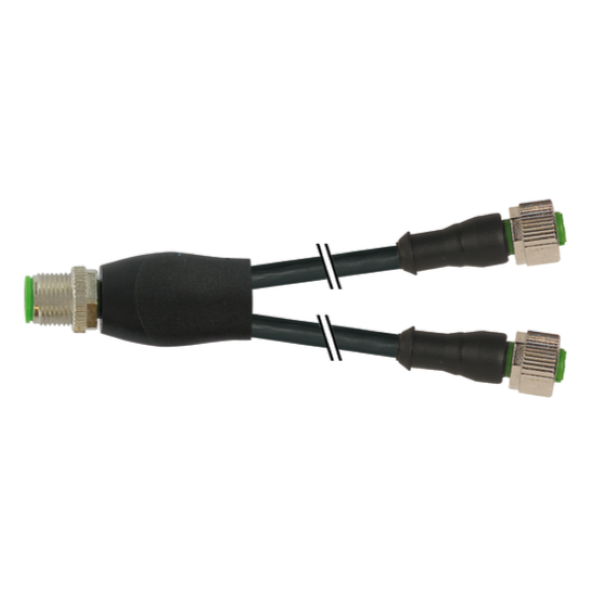

Đầu nối chữ Y M12 male – 2 x M12 female 0° A-code 7000-40701-6130060 là dây cáp kết nối 3 đầu nối, kiểu Y, giữa M12 (đực, 0°, 4 chân) và 2xM12 (cái 0°, 3 chân), A-code
Có sẵn cáp dài 0.6 mét, chịu dầu và chống mài mòn.
(PVC 3×0.34 bk UL/CSA 0.6m)

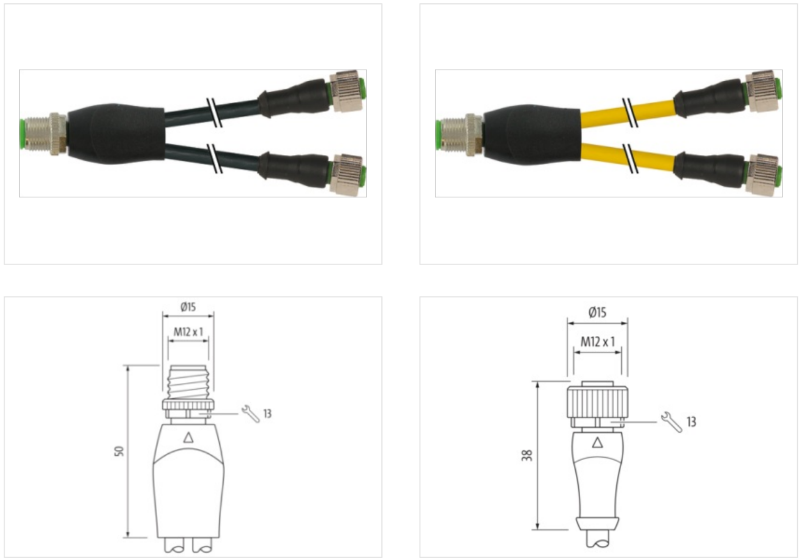

Đầu nối chữ Y M12 male – 2 x M12 female 0° A-code 7000-40701-6130060
Đầu nối chữ Y M12 male – 2 x M12 female 0° A-code 7000-40701-6130060
– PVC 3×0.34 bk UL/CSA 0.6m
– M12 (đực, 0°, 4 chân) – 2xM12 (cái, 0°, 3 chân), A-code, chiều dài cáp 0.6 mét
– Inserted, screwed
– IP67, IP66K, IP65

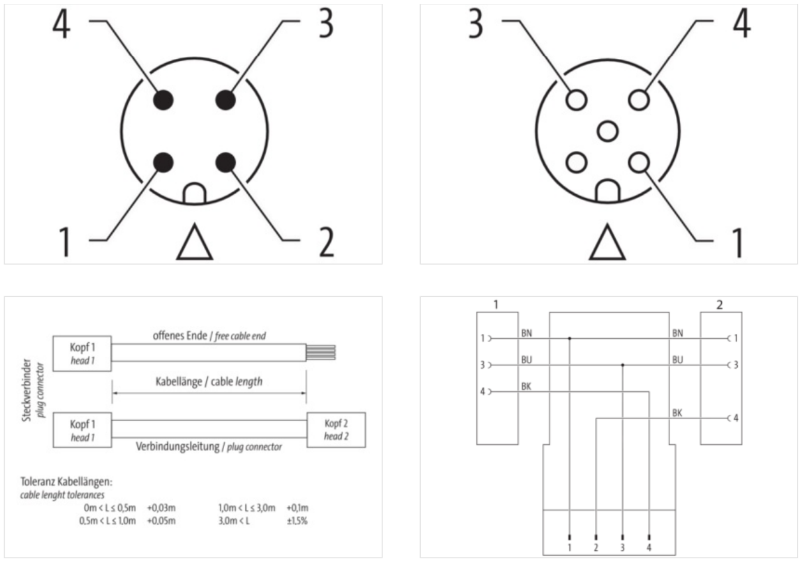

Thông số kỹ thuật – Đầu nối chữ Y M12 male – 2 x M12 female 0° A-code 7000-40701-6130060
Side 1
| Family construction form | M12 |
| No. of poles | 3 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Side 2
| Family construction form | M12 |
| No. of poles | 3 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Side 3
| Family construction form | M12 |
| No. of poles | 4 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | no |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 2.5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Material screw connection | Zinc die-casting |
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Material gasket | FKM |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | DIN EN 61076-2-101 (M12) |
