Đầu nối chữ T/ T-Coupler M12 male_ 2xM12 female 7000-41191-0000000
Đầu nối chữ T (T-Coupler) M12 male_ 2xM12 female 7000-41191-0000000 của Murrelektronik
– Là đầu nối chuyển đổi: 1 x M12 male –> 2 x M12 female
– 5 chân, A.-cod.
– Nối tắt chân 2 & 4
– IP67

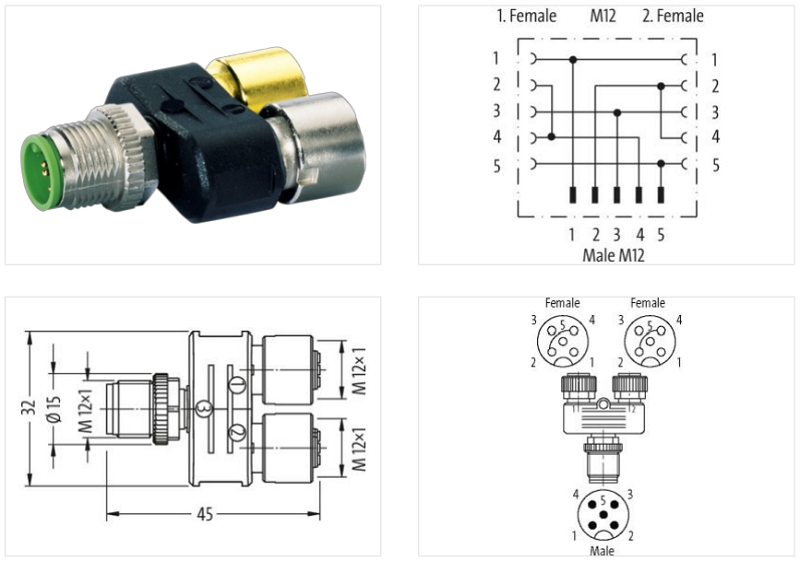

Đầu nối chữ T (T-Coupler) M12 male_ 2xM12 female 7000-41191-0000000 là đầu chuyển đổi 1 cổng M12 male thành 2 cổng M12 female, 5 chân, A.-cod.
(5-pol. / 2x 5-pol., Bridge 2-4)
Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt.
Thông số kỹ thuật – Đầu nối chữ T (T-Coupler) M12 male_ 2xM12 female 7000-41191-0000000
Side 1
| Tightening torque | 0,6 Nm |
| Mounting method | screwed, pluggable |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Gender | female |
| Coding | A |
| No. of poles | 5 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2
| Tightening torque | 0,4 Nm |
| Mounting method | screwed, pluggable |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Gender | female |
| Coding | A |
| No. of poles | 5 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage AC max. | 60 V |
| Operating voltage DC max. | 60 V |
| Operating voltage AC (UL-listed) | 30 V |
| Operating voltage DC (UL-listed) | 30 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | no |
Installation | Connection
| Tightening torque | 0,6 Nm |
| Mounting set | M12 x 1 |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
