– Bộ chia tín hiệu dạng chữ T
– 1 đầu đực M8 / 2 đầu cái M8
– A-code 3 cực
– Phân nhánh tín hiệu cảm biến

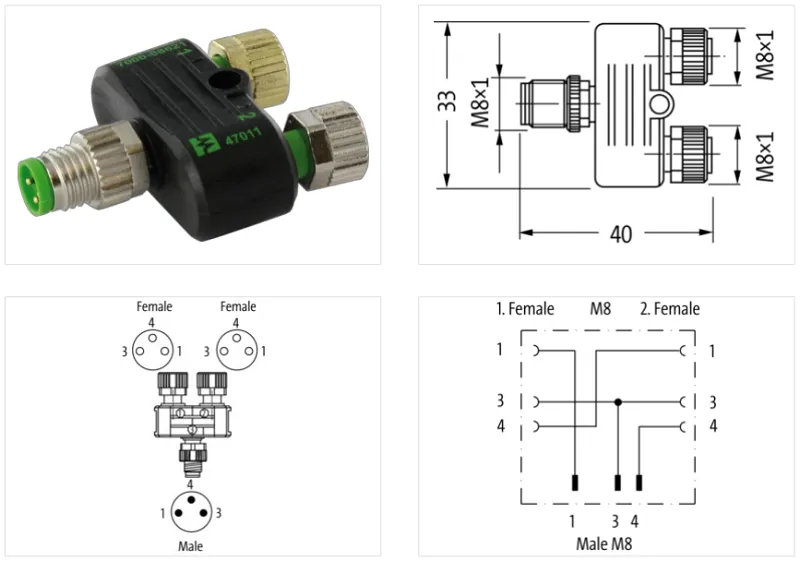

Đầu nối chia hình T M8 male / 2x M8 female A-code 3 cực 7000-88621-0000000 của Murrelektronik là bộ chia tín hiệu dạng chữ T, đầu đực M8 sang 2 đầu cái M8, A-code 3 cực, phù hợp phân nhánh tín hiệu…
Electrical data | Supply
| Operating voltage AC max. | 50 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
| Operating voltage AC max. (UL-listed) | 30 V |
| Operating voltage DC max. (UL-listed) | 30 V |
Installation | Connection
| Tightening torque | 0,4 Nm |
| Mounting set | M8 x 1 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
| Additional condition protection degree | inserted, screwed |
| Rated surge voltage | 1,5 kV |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
