– Đầu nối đực RJ45 Heavy Duty, góc 90° hướng xuống
– 8 cực, đấu dây kiểu IDC
– Có shield, chuẩn CAT5
– Vỏ kim loại chịu lực tốt

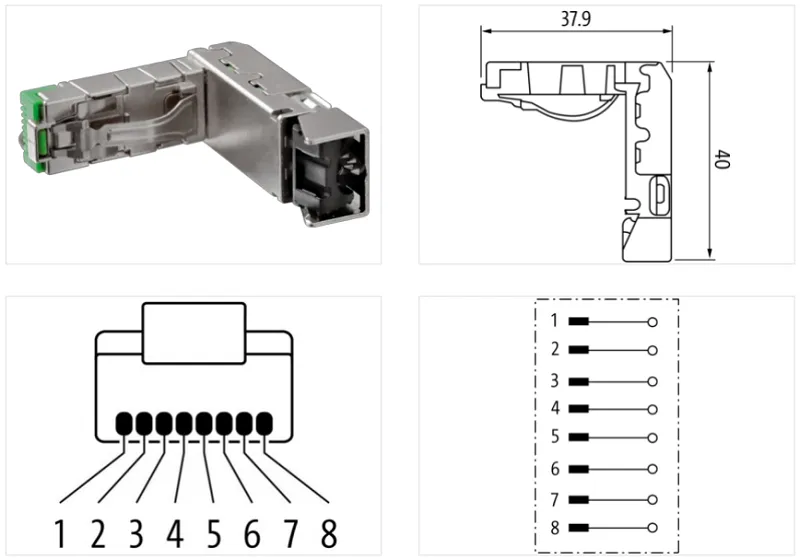

Đầu nối cáp mạng RJ45 Heavy Duty male 90° down IDC 8 cực 7000-74091-0000000 của Murrelektronik là đầu nối đực RJ45, góc 90° hướng xuống, đấu dây kiểu IDC, 8 cực, có shield, chuẩn CAT5, phù hợp cho mạng công nghiệp
Side 1
| Family construction form | RJ45 |
| No. of poles | 8 |
| Material contact | Copper alloy |
Electrical data | Supply
| Operating voltage AC | 50 V |
| Operating voltage DC | 50 V |
| Operating current max. | 1,75 A |
Industrial Communication
| Data transmission rate max. | 1.000 Mbit/s |
| Transfer parameters | CAT5e (ANSI/TIA/EIA-568-B.2-2001), CAT5 Class D according to ISO/IEC 11801 |
Installation
| Connection cross section min. | 0,23 mm² |
| Connection cross section max. | 0,32 mm² |
| AWG number min. | 22 |
| AWG number max. | 22 |
Installation | Connection
| Connection | Cut clamps IDC |
| Mating cycles min. | 750 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP20 |
| Overvoltage category (EN 60950-1) | I |
Mechanical data | Material data
| housing | Zinc die-casting |
| Coating housing | nickel plated |
| Material contact carrier | PC |
| Coating contact | gold plated |
Mechanical data | Mounting data
| Clamping range min. | 5 mm |
| Clamping range max. | 9 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
| Operating temperature max. | 70 °C |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
